Bobcat

S630

Skid Steer Loader

Operating Weight
7,610 lb
Max Speed
7.1 mph
Gross Power
74.0 hp
All skid steer loaders

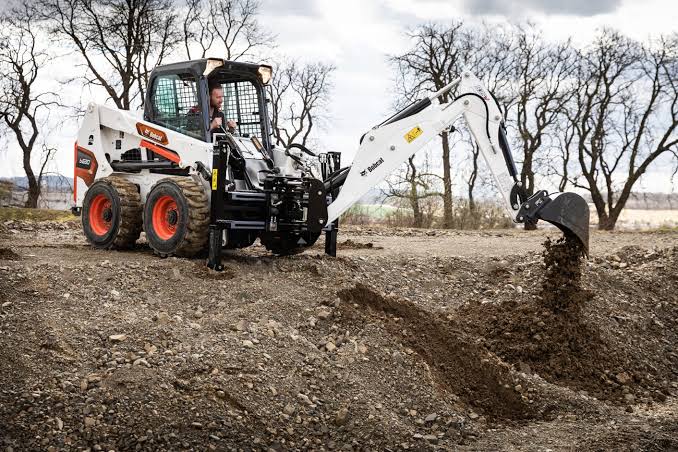

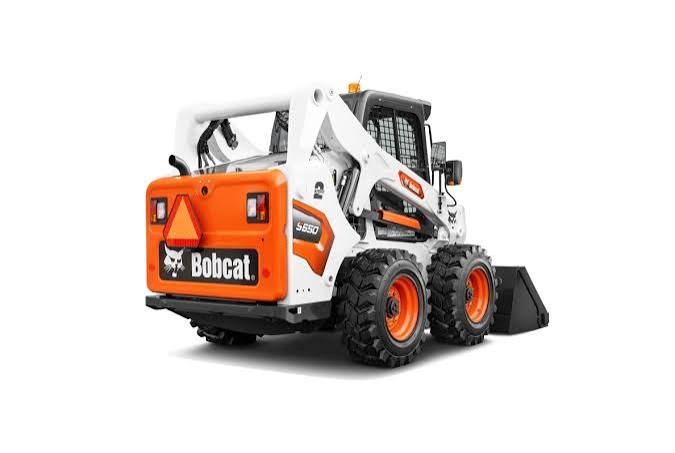

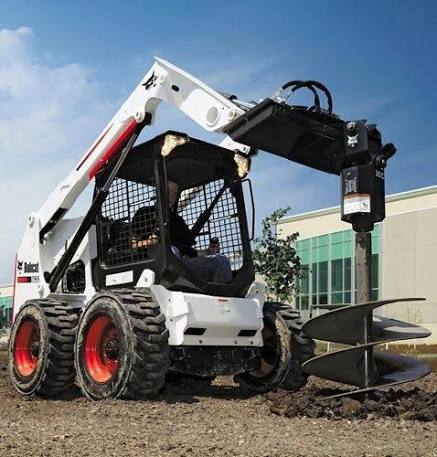

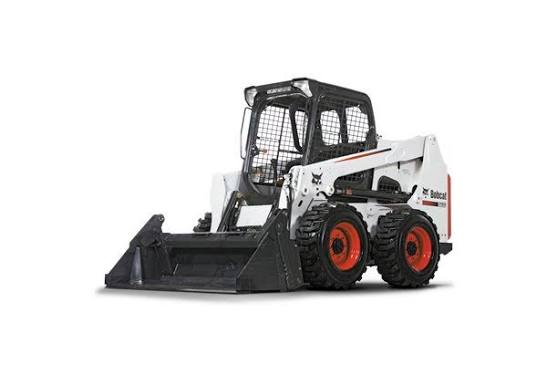

Bobcat S630 Skid Steer Loader
1 / 5
Image 1 of 5
Image: bobcat.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,610 lb
Max Speed7.1 mph
Fuel Capacity24.0 gal
Lift Arm PathRadius

Engine

Engine specifications
Gross Power74.0 hp
AspirationTurbocharged
Emissions CertificationS630

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.0 gal/min
Relief Valve Pressure3,500 psi
Main pump flow optional30.5 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab81 in
Wheelbase46 in
Width Over Tires73 in
Reach at Max Lift and Dump83 in
Length with Bucket15 in
Length w/o Bucket109 in

General Specifications

General Specifications specifications
Engine Power HP (KW)74 (55.2) Starting 2019 Model Year
Operating Width IN. (CM)72.1 (183.1) Starting 2019 Model Year
OPERATING LOAD LBS. (KG)2,180 (989) Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%2,180 (989) Starting 2020 Model Year

Loader

Loader specifications
Operating Load Rating2,180 lb
Tipping Angle4,360 °
Operating Width74 in
Loader SeriesM2-Series
