Bobcat

T140

Compact Track Loader

Operating Weight
6,660 lb
Max Speed - high range
7.3 mph
Displacement
134 in³
Gross Power
46.0 hp
All compact track loaders

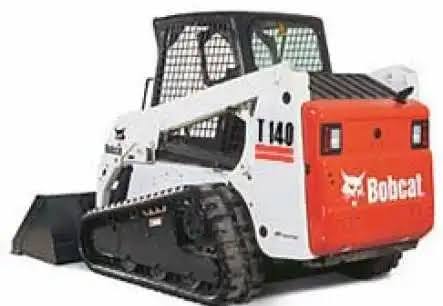

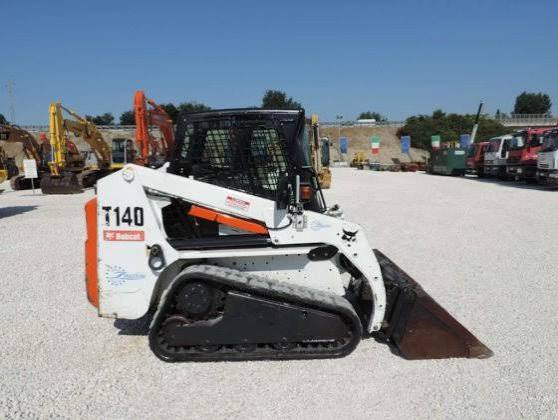

Bobcat T140 Compact Track Loader
1 / 5
Image 1 of 5
Image: shop.bobcat.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,660 lb
Max Speed - high range7.3 mph
Fuel Capacity15.0 gal

Engine

Engine specifications
Engine ModelV2203M-DI
Displacement134 in³
Power Measured @2,800 rpm
Gross Power46.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow16.9 gal/min
Relief Valve Pressure2,700 psi

Dimensions

Dimensions specifications
Height - Top of Cab78 in
Reach at Max Lift and Dump26 in
Width Over Tracks55 in
Length with Bucket125 in
Clearance at Max Lift and Dump84 in
Turning Radius from Center - inc bucket77 in
Length - without Bucket96 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground49 in
Width of Track12 in
Number of Track Rollers per Side3
Track Gauge43 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Tipping Angle4,044 °
Operating Load1,400 lb
