Bobcat

T180

Compact Track Loader

Operating Weight
7,367 lb
Max Speed - high range
7.1 mph
All compact track loaders

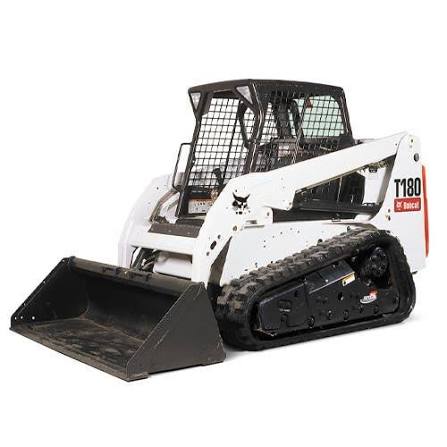

Bobcat T180 Compact Track Loader
1 / 5
Image 1 of 5
Image: heavyequipmentrentalscanada.ca

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,367 lb
Max Speed - high range7.1 mph
Fuel Capacity28.1 gal

Engine

Engine specifications
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow16.3 gal/min
Relief Valve Pressure3,300 psi

Dimensions

Dimensions specifications
Height - Top of Cab77 in
Reach at Max Lift and Dump19 in
Width Over Tracks66 in
Length with Bucket131 in
Clearance at Max Lift and Dump88 in
Turning Radius from Center - inc bucket79 in
Length - without Bucket102 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground55 in
Width of Track13 in
Number of Track Rollers per Side4
Track Gauge54 in

Loader

Loader specifications
Tipping Angle5,331 °
Operating Load1,800 lb
Operating Width68 in
