Bobcat

T595

Compact Track Loader

Operating Weight
8,055 lb
Gross Power
74.0 hp
All compact track loaders

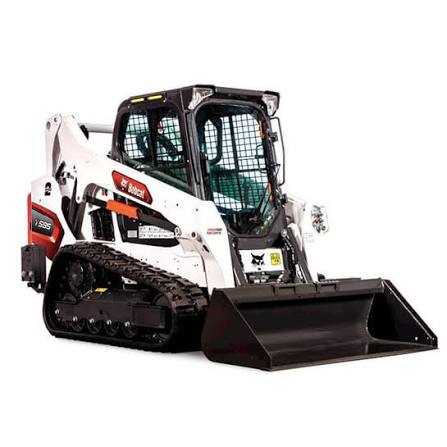

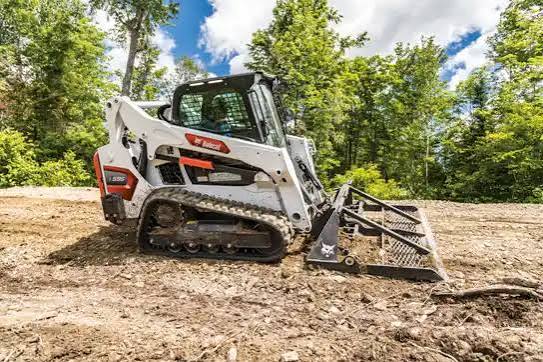

Bobcat T595 Compact Track Loader
1 / 5
Image 1 of 5
Image: bobcat.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,055 lb
Fuel Capacity36.5 gal
Travel Speed7.1 mph

Engine

Engine specifications
Gross Power74.0 hp
Emission Tier LevelTier 4
FuelDiesel
Horsepower - Gross74.0 hp

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure3,500 psi
Auxiliary hydraulic flow17.1 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab78 in
Overall Width67 in
Reach at Max Lift and Dump36 in
Overall Height78 in
Length with Bucket133 in
Turning Radius from Center - machine rear7 in
Length - without Bucket106 in
Overall Track Length55 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Width of Track13 in

General Specifications

General Specifications specifications
Operating Width IN. (CM)68 (172.7) Starting 2026 Model Year
Engine Power HP (KW)70 (52.2) Starting 2022 Model Year
OPERATING LOAD LBS. (KG)2,200 (998) Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%2,200 (998) Starting 2020 Model Year
Narrow Track Operating Width IN. (CM)Roller or Torsion SuspensionNA Starting 2022 Model Year
Wide Track Operating Width IN. (CM)Roller or Torsion SuspensionNA Starting 2022 Model Year
Wide Track Operating Width IN. (CM)NA Starting 2022 Model Year

Loader

Loader specifications
Tipping Angle6,285 °
Operating Load2,200 lb
Operating Width67 in
