BOMAG

BM 2000/60

Cold Planer

Operating Weight - Full Load
71,650 lb
Cutting Width
79 in
Displacement
976 in³
Gross Power
590.0 hp
All cold planers/milling machines

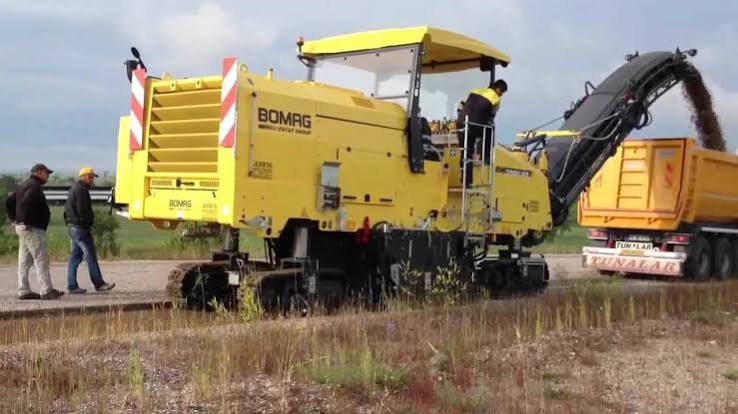

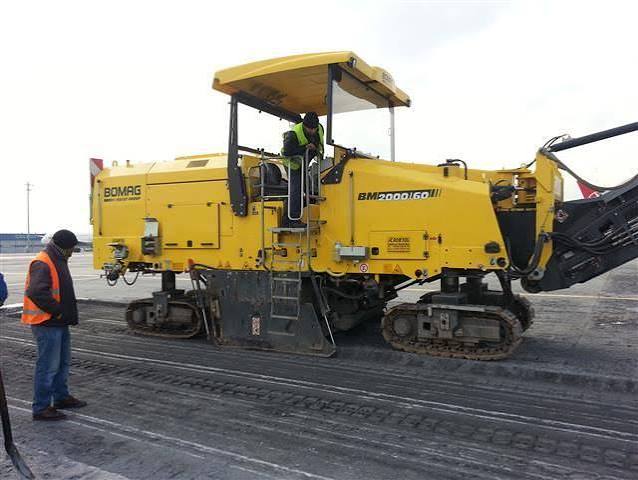

BOMAG BM 2000/60 Cold Planer
1 / 5
Image 1 of 5
Image: tuttbryant.com.au

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - Full Load71,650 lb
Operating Speed1.1 mph
Travel Speed3.2 mph
Fuel Capacity317.1 gal
Water Spray System Fluid Capacity871.7 gal
Shipping Weight - Empty61,950 lb
Hydraulic System Fluid Capacity60.8 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelTCD2015
Displacement976 in³
Power Measured @1,900 rpm
Gross Power590.0 hp
Number of Cylinders8

Dimensions

Dimensions specifications
Shipping Height118 in
Shipping Length473 in
Shipping Width100 in
Operating Length587 in
Max Operating Height178 in

Track

Track specifications
Number of Track Units4
Front Track Width12 in
Rear Track Width12 in
Front Track Length67 in
Rear Track Length67 in

Conveyor System

Conveyor System specifications
Discharge Conveyor Width32 in
Collecting Conveyor Width32 in

Rotary Cutter

Rotary Cutter specifications
Cutting Width79 in
Cutting Depth13 in
Number of Tools168
Tool Spacing1 in
Cutter Diameter42 in
