Buhler

Versatile 400

Tractor

Operating Weight
40,000 lb
Displacement
671 in³
Power Measured @
1,800 rpm
Gross Power
430.0 hp
All tractors

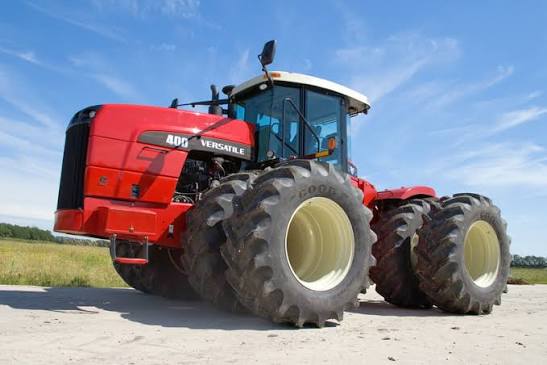

Buhler Versatile 400 Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,000 lb
Fuel Capacity250.0 gal
3 Point Hitch Lift Capacity @ 24 inches13,000 lb
3 Point Hitch TypeCategory III/IVN
Turning Radius192 in
Alternator Supplied Amperage160 A
Operating Voltage12 V
Cooling System Fluid Capacity14.5 gal
Hydraulic System Fluid Capacity20.0 gal
Engine Oil Capacity9.7 gal
Drawbar Static Vertical Load Rating6,000 lb

Engine

Engine specifications
Engine ModelQSM11
Displacement671 in³
Power Measured @1,800 rpm
Gross Power430.0 hp
Net Power400.0 hp
Aspirationturbocharged & air to air aftercooled
Torque Rise35.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity50.2 gal/min
Number of Remote Control Valves4
Relief Valve Pressure2,857 psi

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab143 in
Wheelbase143 in
Overall Length22 in
Tire Size520/85R42

Transmission

Transmission specifications
Max Speed21.8 mph
Number of Forward Gears12
Transmission TypeQuadshift mechanical 12x4
Number of Reverse Gears4

Axles

Axles specifications
Final Driveversatile onboard planetary
