Case IH

535 Heavy-Duty / Quadtrac

Tractor

Operating Weight
54,000 lb
Displacement
915 in³
Power Measured @
2,100 rpm
All tractors

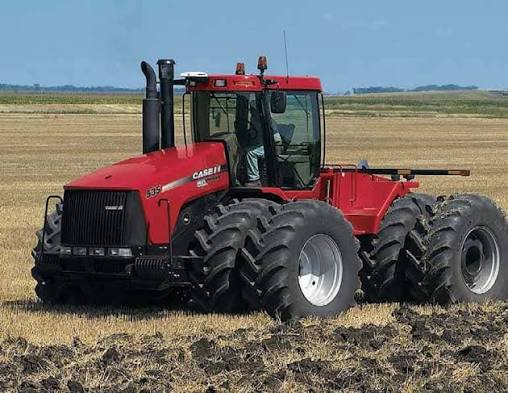

Case IH 535 Heavy-Duty / Quadtrac Tractor
1 / 5
Image 1 of 5
Image: e-farm.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,000 lb
Fuel Capacity300.0 gal
3 Point Hitch Lift Capacity @ 24 inches43,255 lb
3 Point Hitch TypeCat. IV-N
Turning Radius226 in
Drawbar Static Vertical Load Rating6,000 lb

Engine

Engine specifications
Displacement915 in³
Power Measured @2,100 rpm
Net Power535.0 hp
AspirationTurbocharger Wastegate
PTO Power473.0 hp
Torque Rise40.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.0 gal/min

Dimensions

Dimensions specifications
Wheelbase61 in
Tire Size800/70R38 Duals
Width Outside Frame44 in
Track Width30 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission TypePowershift
Number of Reverse Gears2

Axles

Axles specifications
Final DriveInboard Compound Planetary
Axle Diameter5 in
