Case IH
Kioti
DK35SE HST
Tractor
21 specifications

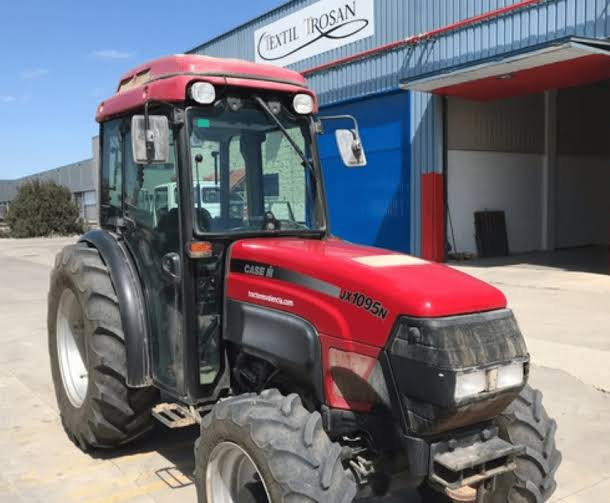

Case IH
JX1095N
- Operating Weight
- 6,107 lb
- Displacement
- 238 in³
- Power Measured @
- 2,300 rpm
- Gross Power
- 91.0 hp
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 6,107 lb |
|---|---|
| Fuel Capacity | 15.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 3,962 lb |
| Alternator Supplied Amperage | 65 A |
Engine
| Displacement | 238 in³ |
|---|---|
| Power Measured @ | 2,300 rpm |
| Gross Power | 91.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 264 lb-ft |
| PTO Power | 80.0 hp |
Hydraulic System
| Pump Flow Capacity | 23.4 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
| Relief Valve Setting | 2,610 psi |
Dimensions
| Ground Clearance | 11 in |
|---|---|
| Wheelbase | 86 in |
| Overall Length | 13 in |
| Overall Width | 54 in |
| Height - Top of ROPS/FOPS | 93 in |
| Height | 52 in |
Transmission
| Max Speed | 18.4 mph |
|---|---|
| Number of Forward Gears | 16 |
| Transmission Type | 16 x 16 w/ mechanical shuttle |
| Number of Reverse Gears | 16 |
Tires & Wheels
| Rear Tires Size | 380/70R24 |
|---|
Production
| Series | JXN Series |
|---|---|
| Years Manufactured | 2,005 – 2,008 |
