Case IH

JX60

Tractor

Operating Weight
5,813 lb
Displacement
177 in³
Power Measured @
2,500 rpm
Gross Power
55.0 hp
All tractors

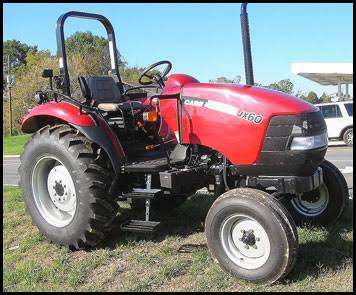

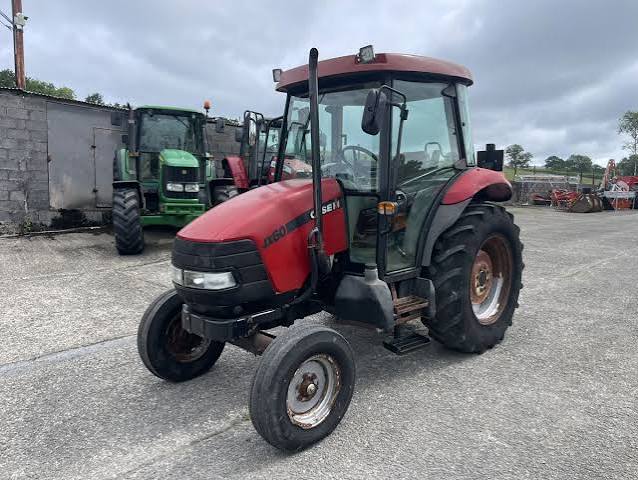

Case IH JX60 Tractor
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,813 lb
Fuel Capacity23.8 gal
3 Point Hitch Lift Capacity @ 24 inches4,010 lb
Alternator Supplied Amperage85 A

Engine

Engine specifications
Displacement177 in³
Power Measured @2,500 rpm
Gross Power55.0 hp
Number of Cylinders3
AspirationNaturally Aspirated
PTO Power45.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity21.7 gal/min
Relief Valve Setting2,755 psi

Dimensions

Dimensions specifications
Wheelbase86 in
Height - Top of ROPS/FOPS97 in

Transmission

Transmission specifications
Number of Forward Gears12
Transmission Type12x12 w / mechanical shuttle
Number of Reverse Gears12

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14.9 x 28

Production

Production specifications
SeriesJX Series
Years Manufactured2,007 – 2,008
