Case IH

LBX432 Standard

Baler

Bale Width
46 in
Overall Width
115 in
Overall Height
120 in
All balers

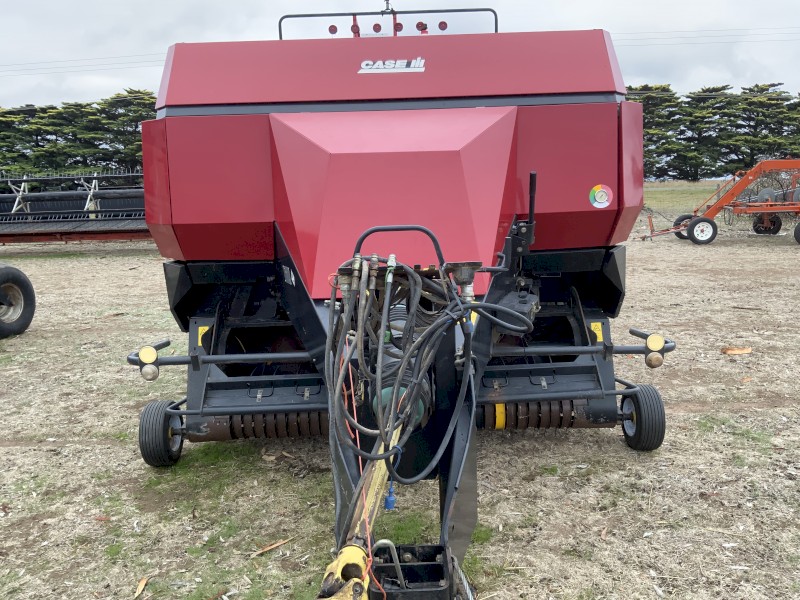

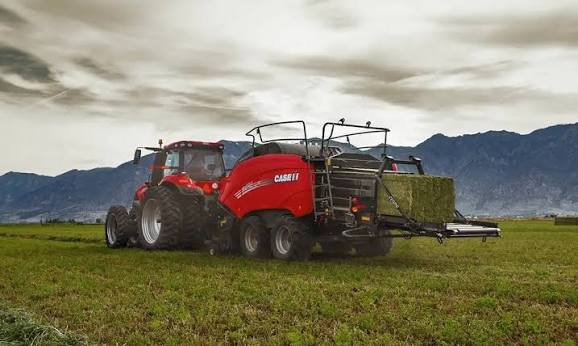

Case IH LBX432 Standard Baler
1 / 5
Image 1 of 5
Image: farmtender.com.au

Specifications

21 data points

Dimensions

Dimensions specifications
Overall Length333 in
Overall Width115 in
Overall Height120 in
Weight17,857 lb
Tractor PTO Power Required122.0 hp

Bale Size

Bale Size specifications
Bale Width46 in
Bale Length - max108 in
Bale Height33 in
Bale Length - min46 in

Baler Pickup

Baler Pickup specifications
Number of Bars4
Tine to Tine Width79 in
Number of Tines64
Lift Typehydraulic

Feeding Chamber

Feeding Chamber specifications
Packer Type3 forks 6 single tines
Stuffer Type6 tine

Plunger

Plunger specifications
SPM42
Stroke Length28 in
Bearing Type4 vertical 2 horizontal roller
Density Controlhydraulic

Wrapping System

Wrapping System specifications
Twine Ball Capacity30
Twine Type6 double knotter
