Case IH

MAGNUM 260

Tractor

Operating Weight
27,179 lb
Displacement
531 in³
Power Measured @
2,000 rpm
Gross Power
257.0 hp
All tractors

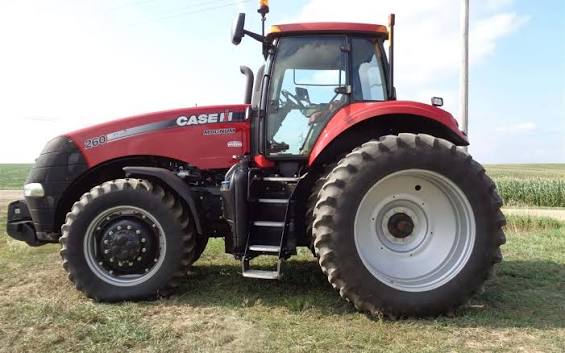

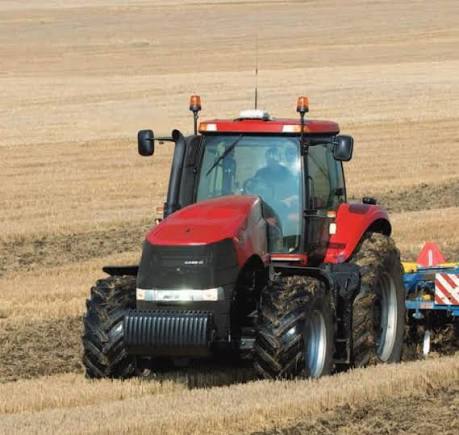

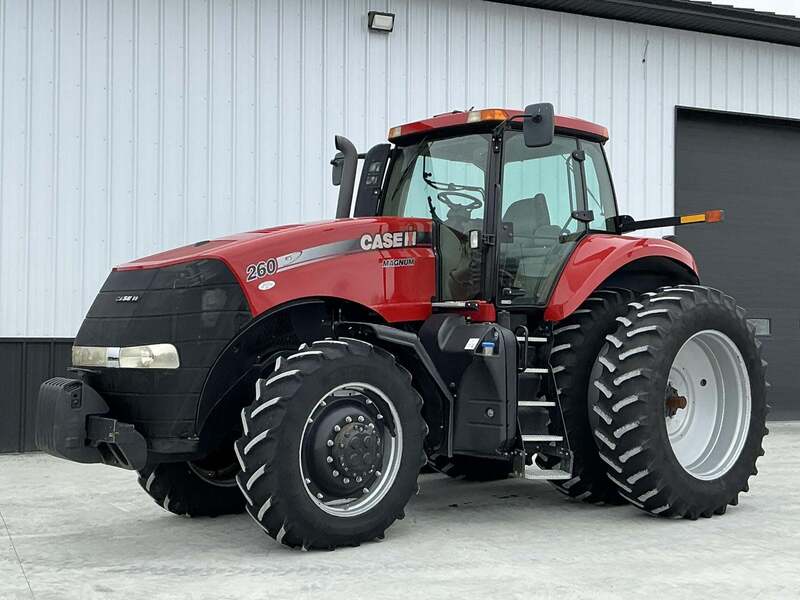

Case IH MAGNUM 260 Tractor
1 / 5
Image 1 of 5
Image: machinerypete.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,179 lb
Fuel Capacity168.0 gal
3 Point Hitch Lift Capacity @ 24 inches12,800 lb
Operating Voltage12 V
DEF tank capacity23.6 gal

Engine

Engine specifications
Displacement531 in³
Power Measured @2,000 rpm
Gross Power257.0 hp
Net Power290.0 hp
Number of Cylinders6
Engine MakeCaseIH
PTO Power215.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity44.0 gal/min
Number of Remote Control Valves4
Pump TypePressure-flow compensating

Dimensions

Dimensions specifications
Wheelbase120 in
Overall Length253 in
Overall Width101 in
Height - Top of ROPS/FOPS133 in

Transmission

Transmission specifications
Number of Forward Gears19
Transmission TypeFull power shift
Number of Reverse Gears4

Production

Production specifications
SeriesMagnum Series
Years Manufactured2,011 – 2,013
