Case IH

MAGNUM 315

Tractor

Operating Weight
27,800 lb
Displacement
531 in³
Gross Power
312.0 hp
All tractors

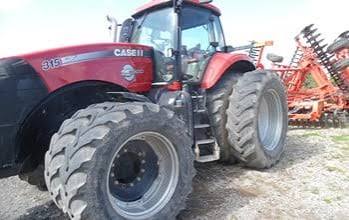

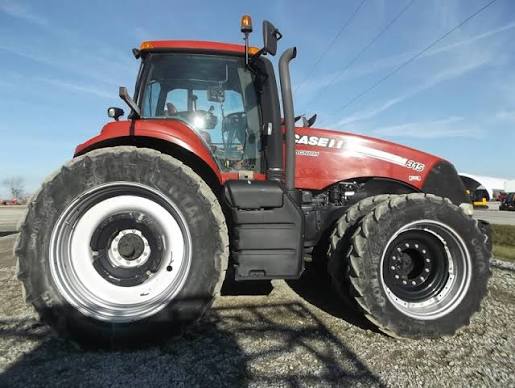

Case IH MAGNUM 315 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

15 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,800 lb
Drawbar Static Vertical Load Rating24,551 lb

Engine

Engine specifications
Displacement531 in³
Gross Power312.0 hp
Net Power347.0 hp
Number of Cylinders6
PTO Power265.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab133 in
Wheelbase120 in
Overall Length21 in

Transmission

Transmission specifications
Number of Forward Gears18
Transmission Typefull power shift
Number of Reverse Gears4

Production

Production specifications
SeriesMagnum Series
Years Manufactured2,011 – 2,013
