Case IH

MAGNUM 340

Tractor

Operating Weight
29,600 lb
Displacement
531 in³
Power Measured @
2,000 rpm
Gross Power
340.0 hp
All tractors

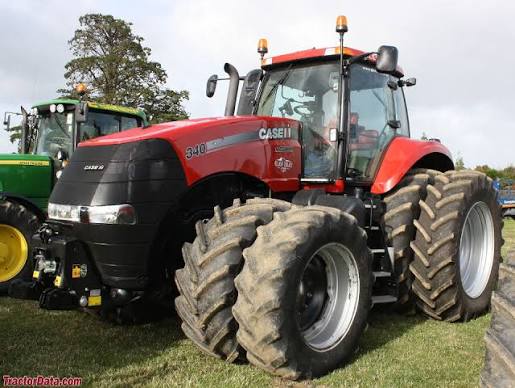

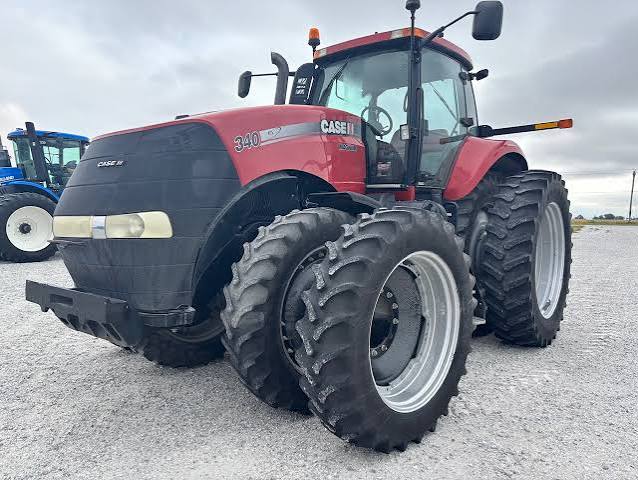

Case IH MAGNUM 340 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,600 lb

Engine

Engine specifications
Displacement531 in³
Power Measured @2,000 rpm
Gross Power340.0 hp
Net Power375.0 hp
Number of Cylinders6
PTO Power290.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab132 in
Wheelbase120 in
Overall Length21 in
Tire Size420/8R34 - 480/80R50

Transmission

Transmission specifications
Number of Forward Gears18
Transmission Typefull power shift
Number of Reverse Gears4

Production

Production specifications
SeriesMagnum Series
Years Manufactured—
