Case IH
Valtra
HiTech T191
Tractor
21 specifications
Case IH

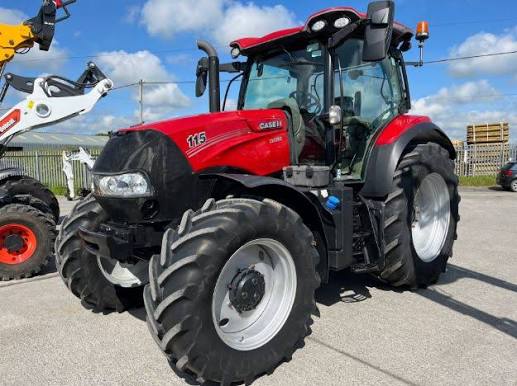

MAXXUM 115
- Operating Weight
- 10,348 lb
- Displacement
- 412 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 115.0 hp
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 10,348 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 7,509 lb |
| Alternator Supplied Amperage | 120 A |
Engine
| Displacement | 412 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 115.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged aftercooled |
| PTO Power | 95.0 hp |
Hydraulic System
| Pump Flow Capacity | 27.1 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
Dimensions
| Wheelbase | 106 in |
|---|---|
| Height - Top of ROPS/FOPS | 115 in |
Transmission
| Number of Forward Gears | 12 |
|---|---|
| Transmission Type | Synchro |
| Number of Reverse Gears | 12 |
Tires & Wheels
| Rear Tires Size | 18.4R34 |
|---|
Production
| Series | Maxxum Series |
|---|---|
| Years Manufactured | — |
