Patriot 2250

Sprayer

Displacement
409 in³
All floaters/sprayers

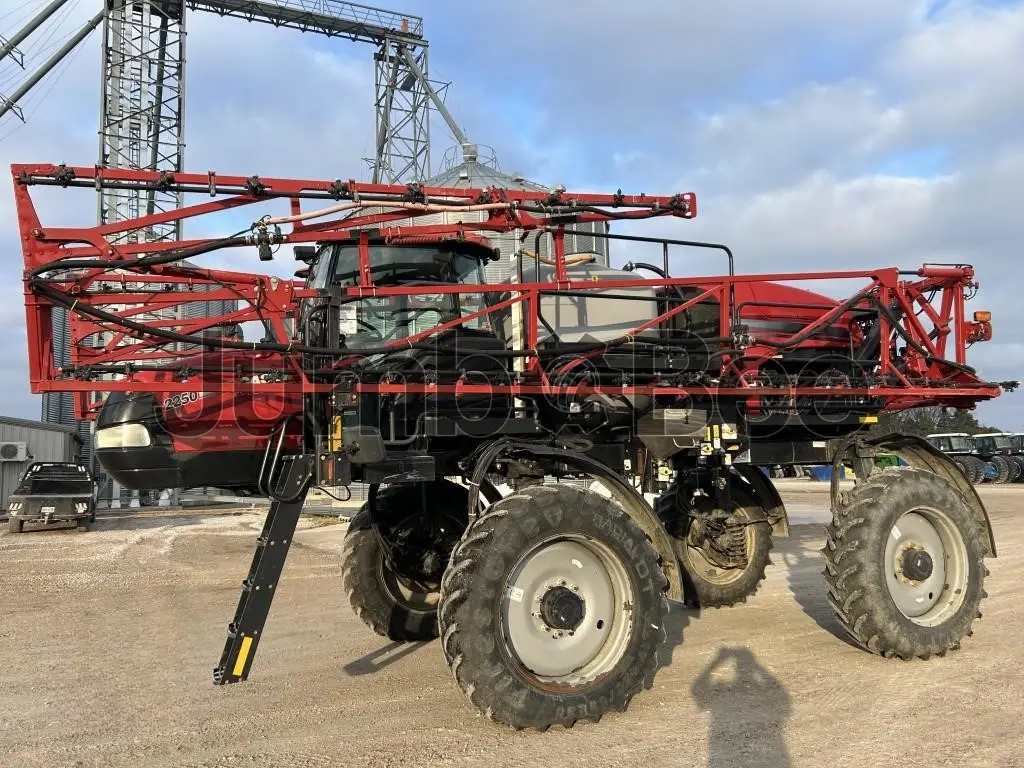

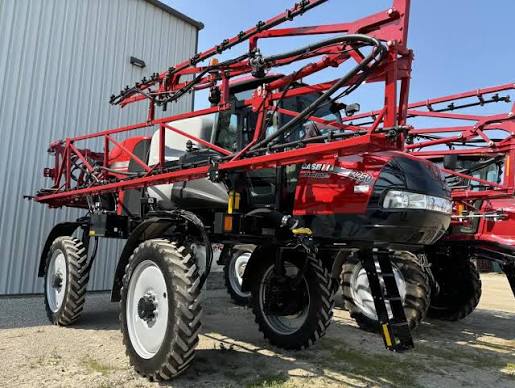

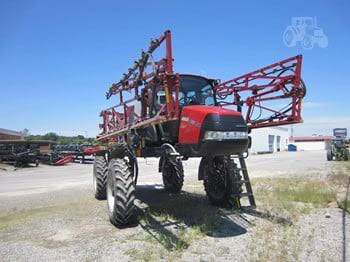

Case IH Patriot 2250 Sprayer
1 / 5
Image 1 of 5
Image: jumbobee.com

Specifications

46 data points

Engine

Engine specifications
Engine ModelNEF 6.7
Displacement409 in³
Number of Cylinders6
Engine MakeCase IH FPT
Alternator175 A
Emission Tier LevelTier 4 B or Final
Peak Torque612 lb-ft
Rated Power175.0 hp
Peak rated power190.0 hp
Engine position Front or rearRear

Hydraulic System

Hydraulic System specifications
Chemical eductorOptional stainless steel

Fluid Capacities

Fluid Capacities specifications
Fuel Tank120.0 gal
Diesel exhaust fluid (DEF) tank21.0 gal
Hydraulic oil reservoir28.0 gal
Foam marker tank7.0 gal
Hand wash tank4.5 gal
Rinse tank74.0 gal
Dry material box option in place of tankNo

Boom

Boom specifications
Max Boom Width1,080 in
Min Boom Width720 in
Nozzle Spacing—
Boom locationRear
Boom sections5 or 6 or 36 with AIM Command FLEX
Overall Height146 in
Overall Length347 in
Overall Width-wheels extended138 in
Overall Width-wheels retracted126 in
Weight with widest boom21,032 lb

Drive System

Drive System specifications
Parking brakesSpring-applied hydraulic released wet disc all wheels
Drive System descriptionHydrostatic
Primary Service BrakeDrive system dynamic braking
Secondary Service BrakeDry disks on front wheels
Speed ranges4 ranges shift on the go
Travel speeds - 1st28.0 mph
Wheel driveFull-time 4WD

Chassis

Chassis specifications
Steering system2WS Hydraulic
SuspensionTrailing-link with coil spring & shock standard Active susp. optional
Total Suspension travel11 in
Turning radius272 in
Wheel base140 in
Wheel track spacing120 in

Solution System

Solution System specifications
Solution Fill connection- Front fillOptional
Solution Fill connection-Left side2 in
Solution pumpCentrifugal-hydraulic motor driven
Solution system tank659.9 gal
Tank materialPolyethylene
