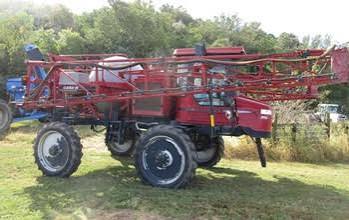

Case IH
Apache
AS1220
Sprayer
21 specifications

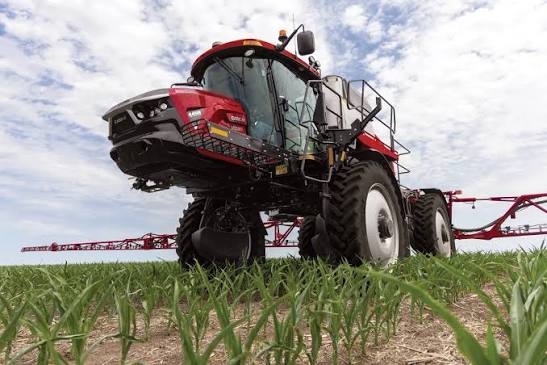

Case IH
PATRIOT 3150
- Max Speed
- 25.0 mph
- Solution Tank Capacity
- 749.9 gal
- Displacement
- 360 in³
- Gross Power
- 152.0 hp
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Solution Tank Capacity | 749.9 gal |
|---|---|
| Rinse Tank Capacity | 35.0 gal |
| Foam Marker Tank Capacity | 35.0 gal |
| Dry Weight - max | 15,700 lb |
Engine
| Displacement | 360 in³ |
|---|---|
| Gross Power | 152.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbo charged |
| Gross Torque | 414 lb-ft |
Dimensions
| Ground Clearance | 48 in |
|---|---|
| Wheelbase | 120 in |
| Overall Length | 90 in |
| Transport Width | 138 in |
| Transport Height | 130 in |
| Tire Size | 320/85 R38 |
Transmission
| Max Speed | 25.0 mph |
|---|---|
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Boom
| Max Boom Width | 1,080 in |
|---|---|
| Min Boom Width | 900 in |
| Max Adjustable Height | 60 in |
| Min Adjustable Height | 20 in |
| Nozzle Spacing | 20 in |
