Case IH

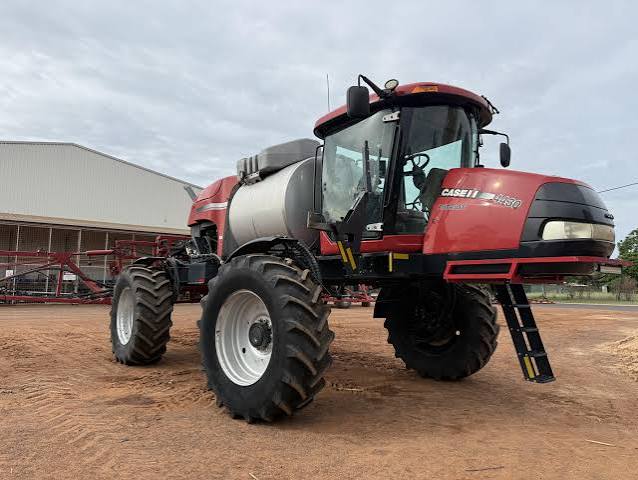

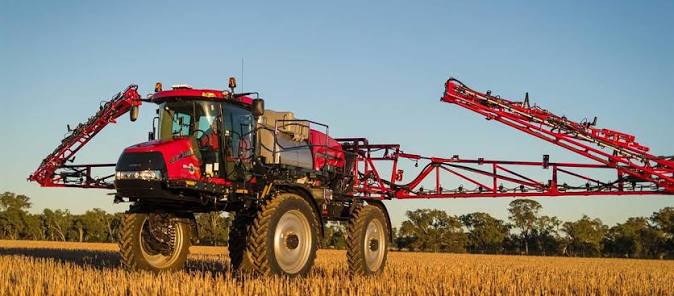

PATRIOT 4430
- Max Speed
- 29.9 mph
- Solution Tank Capacity
- 1,199.8 gal
- Displacement
- 531 in³
- Gross Power
- 335.3 hp
1 / 5
Image 1 of 5
Specifications
18 data points
Operating Specifications
| Solution Tank Capacity | 1,199.8 gal |
|---|---|
| Fuel Capacity | 140.1 gal |
| Dry Weight - min | 12,428 lb |
| Dry Weight - max | 13,109 lb |
Engine
| Engine Model | FPT |
|---|---|
| Displacement | 531 in³ |
| Gross Power | 335.3 hp |
| Number of Cylinders | 6 |
| Gross Torque | 1,143 lb-ft |
Dimensions
| Ground Clearance | 54 in |
|---|---|
| Wheelbase | 162 in |
| Overall Length | 30 in |
| Transport Width | 138 in |
| Transport Height | 146 in |
| Tire Size | Available with 320 / 90R46 380 / 90R46 650 / 65R38 and 620 / 70R38 |
Transmission
| Max Speed | 29.9 mph |
|---|
Boom
| Max Adjustable Height | 84 in |
|---|---|
| Min Adjustable Height | 19 in |
