John Deere
Top Air
TA 1600 120ft
Sprayer
7 specifications
John Deere
6700
- Max Speed
- 18.7 mph
- Solution Tank Capacity
- 420.1 gal
- Displacement
- 276 in³
- Gross Power
- 106.0 hp
1 / 5

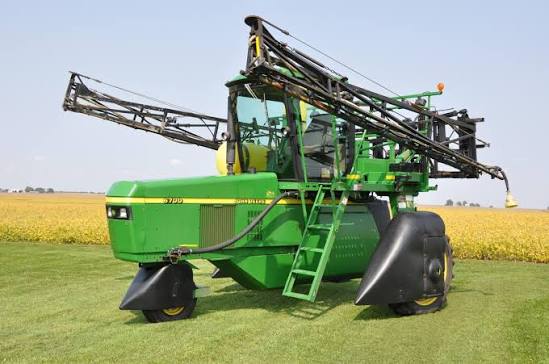

Image 1 of 5
Specifications
20 data points
Operating Specifications
| Solution Tank Capacity | 420.1 gal |
|---|---|
| Fuel Capacity | 45.0 gal |
| Dry Weight - min | 9,700 lb |
| Hydraulic Fluid Capacity | 9.2 gal |
| Dry Weight - max | 11,200 lb |
Engine
| Engine Model | PowerTech |
|---|---|
| Displacement | 276 in³ |
| Gross Power | 106.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
Dimensions
| Wheelbase | 127 in |
|---|---|
| Tire Size | front 7.50-20 rear 12-4-38pi |
Transmission
| Max Speed | 18.7 mph |
|---|---|
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
Boom
| Min Boom Width | 720 in |
|---|---|
| Max Adjustable Height | 96 in |
| Min Adjustable Height | 24 in |
| Number of Sections | 2 |
| Plumbing Material | rubber hose |
