Case IH

PATRIOT 3320

Sprayer

Max Speed
30.0 mph
Solution Tank Capacity
999.9 gal
Displacement
409 in³
Gross Power
240.0 hp
All floaters/sprayers

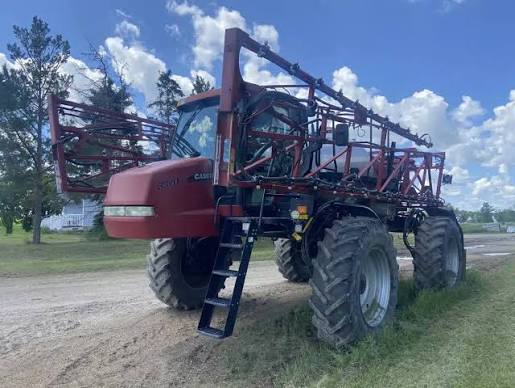

Case IH PATRIOT 3320 Sprayer
1 / 5
Image 1 of 5
Image: es.pinterest.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Solution Tank Capacity999.9 gal
Rinse Tank Capacity112.0 gal
Fuel Capacity120.0 gal
Foam Marker Tank Capacity55.0 gal
Dry Weight - max23,400 lb

Engine

Engine specifications
Displacement409 in³
Gross Power240.0 hp
Aspirationturbo-charged after-cooled
Gross Torque752 lb-ft

Dimensions

Dimensions specifications
Ground Clearance53 in
Wheelbase150 in
Overall Length28 in
Transport Width138 in
Transport Height144 in
Tire Size520/85 R38

Transmission

Transmission specifications
Max Speed30.0 mph
Transmission TypeHydrostatic
Number of Forward Gears3
Number of Reverse Gears3

Boom

Boom specifications
Max Boom Width1,080 in
Min Boom Width720 in
Max Adjustable Height84 in
Min Adjustable Height19 in
Nozzle Spacing20 in
