Patriot 3340

Sprayer

Displacement
409 in³
All floaters/sprayers

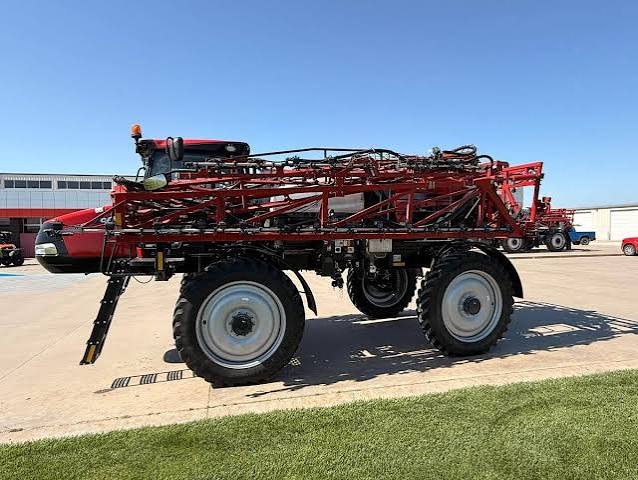

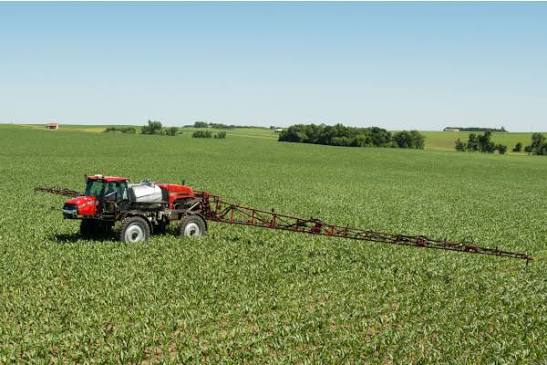

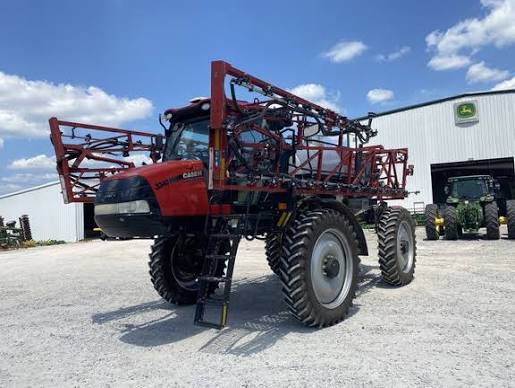

Case IH Patriot 3340 Sprayer
1 / 5
Image 1 of 5
Image: usedequipment.caseih.com

Specifications

47 data points

Engine

Engine specifications
Engine ModelNEF 6.7
Displacement409 in³
Number of Cylinders6
Engine MakeCase IH FPT
Alternator175 A
Emission Tier LevelTier 4 B or Final
Peak Torque867 lb-ft
Rated Power285.0 hp
Peak rated power309.0 hp
Engine position Front or rearRear

Hydraulic System

Hydraulic System specifications
Chemical eductorOptional stainless steel

Fluid Capacities

Fluid Capacities specifications
Fuel Tank120.0 gal
Diesel exhaust fluid (DEF) tank21.0 gal
Hydraulic oil reservoir29.0 gal
Dry material box option in place of tankNo
Hand wash tank4.5 gal
Foam marker tank55.0 gal
Rinse tank112.0 gal

Boom

Boom specifications
Max Boom Width1,440 in
Min Boom Width720 in
Nozzle Spacing—
Boom locationRear
Boom sections5 or 6 with 90 6 with 100 or 36 with AIM Command FLEX
Overall Height146 in
Overall Length347 in
Overall Width-wheels extended178 in
Overall Width-wheels retracted138 in
Weight with widest boom23,479 lb
Weight with shortest boom23,479 lb

Drive System

Drive System specifications
Parking brakesSpring-applied hydraulic released wet disc all wheels
Drive System descriptionHydrostatic
Primary Service BrakeDrive system dynamic braking
Secondary Service BrakeDry disks on front wheels
Speed rangesInfinitely variable
Travel speeds - 1st30.0 mph
Wheel driveFull-time 4WD

Chassis

Chassis specifications
Steering system2WS Hydraulic
SuspensionTrailing-link with coil spring & shock standard Active susp. optional.
Total Suspension travel11 in
Turning radius280 in
Wheel base150 in
Wheel track spacing157 in

Solution System

Solution System specifications
Solution Fill connection- Front fillOptional
Solution Fill connection-Left side3 in
Solution pumpCentrifugal-hydraulic motor driven
Solution system tank999.9 gal
Tank materialStainless steel
