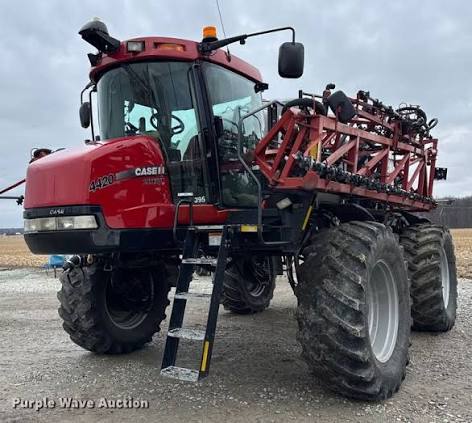

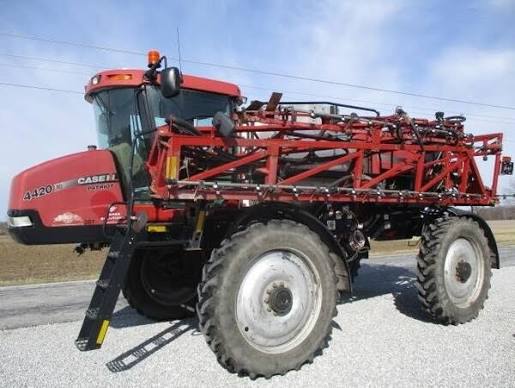

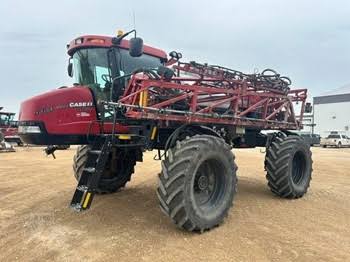

Case IH
PATRIOT 4420
- Max Speed
- 30.0 mph
- Solution Tank Capacity
- 1,199.9 gal
- Displacement
- 507 in³
- Gross Power
- 310.0 hp
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Solution Tank Capacity | 1,199.9 gal |
|---|---|
| Rinse Tank Capacity | 70.0 gal |
| Fuel Capacity | 140.0 gal |
| Dry Weight - min | 25,060 lb |
| Foam Marker Tank Capacity | 55.0 gal |
| Dry Weight - max | 25,940 lb |
Engine
| Displacement | 507 in³ |
|---|---|
| Gross Power | 310.0 hp |
| Aspiration | turbo-charged after-cooled |
| Gross Torque | 1,020 lb-ft |
Dimensions
| Ground Clearance | 54 in |
|---|---|
| Wheelbase | 150 in |
| Overall Length | 28 in |
| Transport Width | 138 in |
| Transport Height | 144 in |
| Tire Size | 380/90 R46 |
Transmission
| Max Speed | 30.0 mph |
|---|---|
| Transmission Type | hydrostatic |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Boom
| Max Boom Width | 1,080 in |
|---|---|
| Min Boom Width | 720 in |
| Max Adjustable Height | 84 in |
| Min Adjustable Height | 19 in |
| Nozzle Spacing | 20 in |
