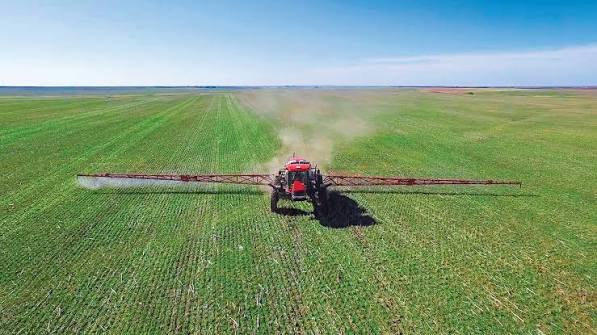

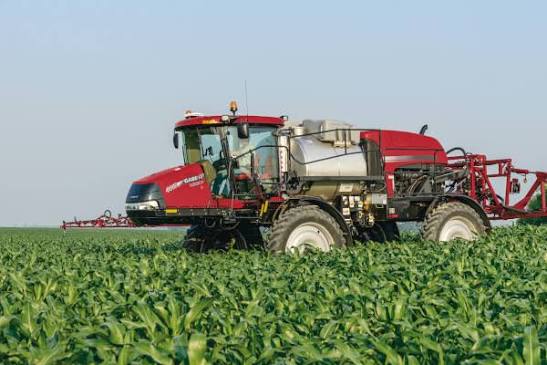

Case IH
Apache
AS1220
Sprayer
21 specifications
1 / 5
Image 1 of 5
Specifications
47 data points
Engine
| Engine Model | Cursor 8.7 |
|---|---|
| Displacement | 531 in³ |
| Number of Cylinders | 6 |
| Engine Make | Case IH FPT |
| Alternator | 200 A |
| Emission Tier Level | Tier 4 B or Final |
| Peak Torque | 1,143 lb-ft |
| Rated Power | 335.0 hp |
| Peak rated power | 374.0 hp |
| Engine position Front or rear | Rear |
Hydraulic System
| Chemical eductor | Optional stainless steel |
|---|
Fluid Capacities
| Fuel Tank | 140.0 gal |
|---|---|
| Diesel exhaust fluid (DEF) tank | 21.0 gal |
| Hydraulic oil reservoir | 29.0 gal |
| Dry material box option in place of tank | No |
| Hand wash tank | 4.5 gal |
| Foam marker tank | 55.0 gal |
| Rinse tank | 140.0 gal |
Boom
| Max Boom Width | 1,440 in |
|---|---|
| Min Boom Width | 720 in |
| Nozzle Spacing | — |
| Boom location | Rear |
| Boom sections | 5 or 6 with 90 6 with 100 or 36 with AIM Command FLEX |
| Overall Height | 146 in |
| Overall Length | 359 in |
| Overall Width-wheels extended | 178 in |
| Overall Width-wheels retracted | 138 in |
| Weight with widest boom | 28,900 lb |
| Weight with shortest boom | 27,399 lb |
Drive System
| Parking brakes | Spring-applied hydraulic released wet disc all wheels |
|---|---|
| Drive System description | Hydrostatic |
| Primary Service Brake | Drive system dynamic braking |
| Secondary Service Brake | Dry disks on front wheels |
| Speed ranges | Infinitely variable |
| Travel speeds - 1st | 30.0 mph |
| Wheel drive | Full-time 4WD |
Chassis
| Steering system | 2WS Hydraulic |
|---|---|
| Suspension | Trailing-link with coil spring & shock standard Active susp. optional |
| Total Suspension travel | 11 in |
| Turning radius | 296 in |
| Wheel base | 160 in |
| Wheel track spacing | 157 in |
Solution System
| Solution Fill connection- Front fill | Optional |
|---|---|
| Solution Fill connection-Left side | 3 in |
| Solution pump | Centrifugal-hydraulic motor driven |
| Solution system tank | 1,199.9 gal |
| Tank material | Stainless steel |
