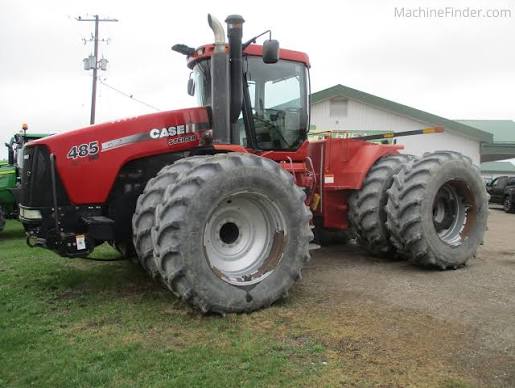

Case IH
STEIGER 485
- Operating Weight
- 54,000 lb
- Displacement
- 787 in³
- Power Measured @
- 2,000 rpm
- Gross Power
- 485.0 hp
1 / 5
Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight | 54,000 lb |
|---|---|
| Fuel Capacity | 300.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 19,620 lb |
| 3 Point Hitch Type | 4N |
| Alternator Supplied Amperage | 175 A |
| Operating Voltage | 12 V |
| Engine Oil Capacity | 8.2 gal |
| Front Tire Size | 710/70R42 |
| Rear Tire Size | 710/70R42 |
Engine
| Displacement | 787 in³ |
|---|---|
| Power Measured @ | 2,000 rpm |
| Gross Power | 485.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Engine Make | Iveco |
| PTO Power | 429.0 hp |
| Stroke | 6 in |
| Bore | 5 in |
Hydraulic System
| Pump Flow Capacity | 40.0 gal/min |
|---|---|
| Number of Remote Control Valves | — |
| Hydraulic System Type | Parallel pressure flow compensated |
Dimensions
| Wheelbase | 154 in |
|---|---|
| Width Outside Frame | 44 in |
| Front Axle Clearance | 45 in |
| Rear axle clearance | 46 in |
Transmission
| Max Speed - Reverse | 8.5 mph |
|---|---|
| Max Speed - Forward | 19.7 mph |
| Number of Forward Gears | 16 |
| Transmission Type | Full power shift |
| Number of Reverse Gears | 2 |
