Case IH

SV185

Skid Steer Loader

All skid steer loaders

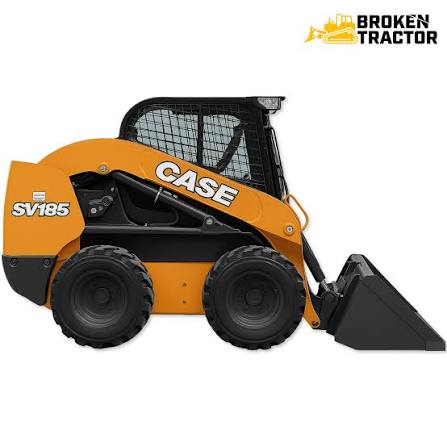

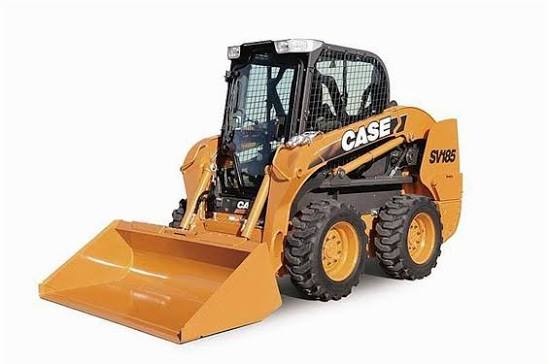

Case IH SV185 Skid Steer Loader
1 / 5
Image 1 of 5
Image: casece.com

Specifications

16 data points

Engine

Engine specifications
Engine ModelISM N844LTADI-F-45
Displacement135 in³
Emissions CertificationTier 4 Final (CEGR DOC)
Engine peak torque153 lb-ft

Weights

Weights specifications
Operating Weight6,570 lb

Hydraulic System

Hydraulic System specifications
Auxiliary hydraulic flow20.6 gal/min
Optional auxiliary hydraulic pump flow30.7 gal/min

Dimensions

Dimensions specifications
Width Over Tires65 in
Height - Top of ROPS/FOPS78 in
Overall length (W/bucket)137 in
Dump height - fully raised, 45 degrees dump91 in
Bucket hinge pin fully raised121 in

Fluid Capacities

Fluid Capacities specifications
Rated Operating Capacity1,852 lb

Bucket

Bucket specifications
Breakout Force5,553 lb

Loader

Loader specifications
Tipping Angle3,699 °

Lift System

Lift System specifications
Lift ConfigurationVertical
