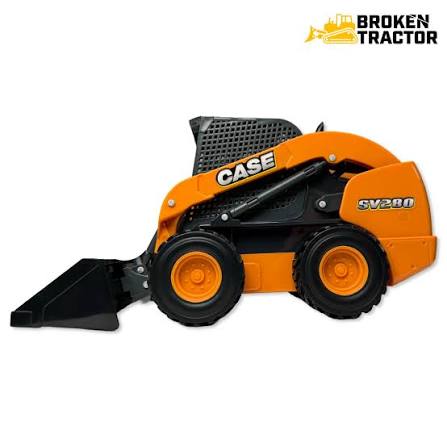

Case IH SV280 Skid Steer Loader
1 / 5
Image 1 of 5
Image: casece.com

Specifications

16 data points

Engine

Engine specifications
Engine ModelFPT F5H FL463 A*F001
Displacement207 in³
Emissions CertificationTier 4 Final (CEGR DOC PM Catalyst)
Engine peak torque232 lb-ft

Weights

Weights specifications
Operating Weight8,091 lb

Hydraulic System

Hydraulic System specifications
Auxiliary hydraulic flow24.2 gal/min
Optional auxiliary hydraulic pump flow37.6 gal/min

Dimensions

Dimensions specifications
Width Over Tires71 in
Height - Top of ROPS/FOPS79 in
Overall length (W/bucket)146 in
Dump height - fully raised, 45 degrees dump101 in
Bucket hinge pin fully raised131 in

Fluid Capacities

Fluid Capacities specifications
Rated Operating Capacity2,800 lb

Bucket

Bucket specifications
Breakout Force8,768 lb

Loader

Loader specifications
Tipping Angle5,600 °

Lift System

Lift System specifications
Lift ConfigurationVertical
