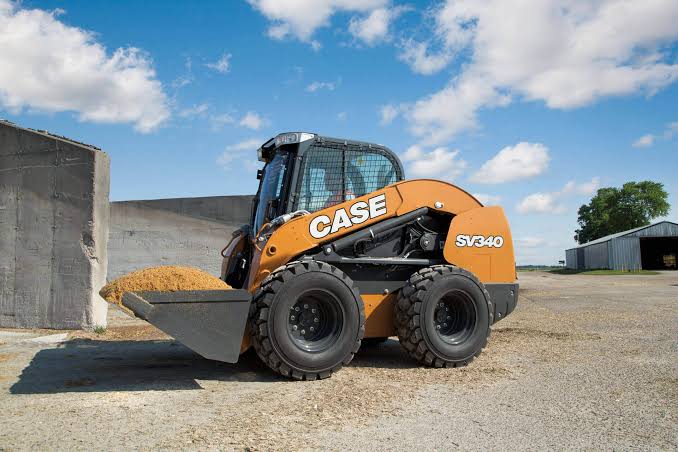

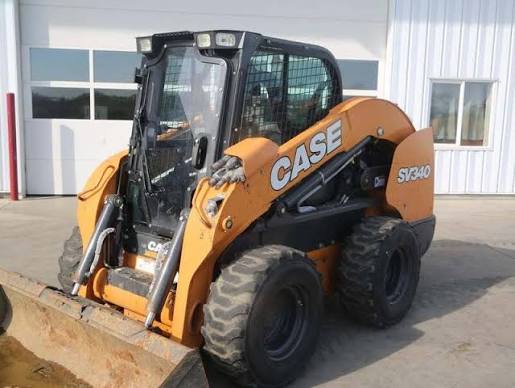

Case IH SV340 Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

16 data points

Engine

Engine specifications
Engine ModelFPT F5B FL413 E*B002
Displacement207 in³
Emissions CertificationTier 4 Final (SCR)
Engine peak torque282 lb-ft

Weights

Weights specifications
Operating Weight9,118 lb

Hydraulic System

Hydraulic System specifications
Auxiliary hydraulic flow24.2 gal/min
Optional auxiliary hydraulic pump flow38.7 gal/min

Dimensions

Dimensions specifications
Width Over Tires71 in
Height - Top of ROPS/FOPS79 in
Overall length (W/bucket)149 in
Dump height - fully raised, 45 degrees dump101 in
Bucket hinge pin fully raised131 in

Fluid Capacities

Fluid Capacities specifications
Rated Operating Capacity3,406 lb

Bucket

Bucket specifications
Breakout Force9,532 lb

Loader

Loader specifications
Tipping Angle6,812 °

Lift System

Lift System specifications
Lift ConfigurationVertical
