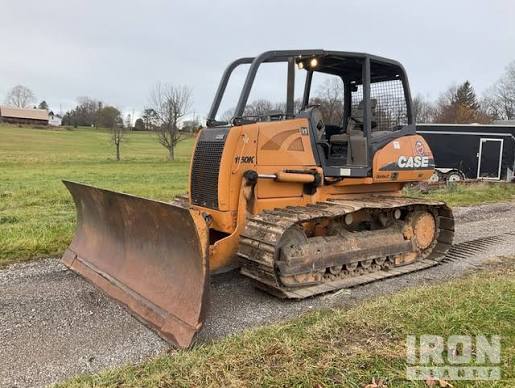

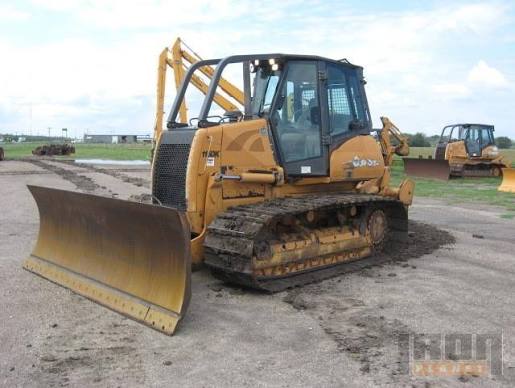

Case
1150K XLT
- Operating Weight
- 27,858 lb
- Max Speed - Forward
- 6.0 mph
- Gross Power
- 130.0 hp
- Net Power
- 118.0 hp
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 27,858 lb |
|---|---|
| Fuel Capacity | 65.0 gal |
| Cooling System Fluid Capacity | 8.5 gal |
| Engine Oil Capacity | 4.1 gal |
| Hydraulic Fluid Capacity | 26.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 A |
Engine
| Engine Model | 667TA/EDJ |
|---|---|
| Displacement | 411 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 130.0 hp |
| Net Power | 118.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged with Aftercooler |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 434 lb-ft |
Hydraulic System
| Pump Flow Capacity | 34.9 gal/min |
|---|---|
| Relief Valve Pressure | 2,830 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 113 in |
| Length of Track on Ground | 102 in |
| Length w/ Blade | 199 in |
Transmission
| Max Speed - Forward | 6.0 mph |
|---|---|
| Max Speed - Reverse | 6.0 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 1 |
| Number of Reverse Gears | 1 |
Undercarriage
| Track Gauge | 71 in |
|---|---|
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 2 |
| Standard Shoe Size | 24 in |
| Track Pitch | 7 in |
Standard Blade
| Width | 121 in |
|---|---|
| Height | 44 in |
| Capacity | 3.90 yd³ |
| Blade Angle (both directions) | 25 ° |
