Case

1221F

Wheel Loader

Operating Weight
66,425 lb
Bucket Capacity - heaped
6.91 yd³
Gross Power
355.0 hp
Net Power
351.0 hp
All wheel loaders

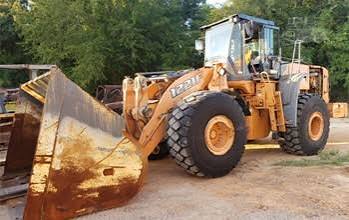

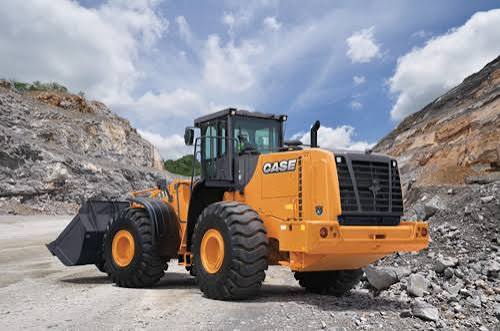

Case 1221F Wheel Loader
1 / 5
Image 1 of 5
Image: binghamequipment.com

Specifications

52 data points

Operating Specifications

Operating Specifications specifications
Operating Weight66,425 lb
Fuel Capacity113.6 gal
Operating Voltage24 V
Rear Axle Oscillation26 °
Front Axle/Diff Fluid Capacity15.4 gal
Rear Axle/Diff Fluid Capacity15.4 gal
Cooling System Fluid Capacity17.7 gal
Transmission Fluid Capacity11.4 gal
Rated Bucket Capacity9.19 yd³

Engine

Engine specifications
Engine ModelCummins QSX11.9
Displacement726 in³
Gross Power355.0 hp
Net Power351.0 hp
Number of Cylinders6
Max Torque1,250 lb-ft
MakeCummins
Torque Rise40.0 %
Alternator80 A
Battery12-volt
Rated Engine Speed2,100 rpm
EmissionsInterim Tier 4

Weights

Weights specifications
Operating Weight66,425 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity111.0 gal/min
Pump TypeAxial Piston Pump
Steering pump typeArticulation
Maximum system pressure3,983 psi

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab152 in
Wheelbase146 in
Width Over Tires127 in
Reach at Max Lift and Dump89 in
Hinge Pin - Max Height180 in
Overall length (L/bucket)379 in
Turning Radius Outside Tires299 in
Dump height - fully raised, 45 degrees dump124 in
Dump reach @ full height, 45 degrees dump64 in

Transmission

Transmission specifications
Max Speed - Forward22.4 mph
Transmission TypePowershift
Number of Forward Gears4
Number of Reverse Gears3
Differential lockF: LSD / R: LSD

Brakes & Steering

Brakes & Steering specifications
Service brakeWet Multi Disc

Bucket

Bucket specifications
Bucket Capacity - heaped6.91 yd³
Dump Clearance at Max Raise124 in
Breakout Force55,730 lb

General Specifications

General Specifications specifications
Operating Weight66,800 (30,299) — Starting 2016 Model Year
Bucket Capacity9.2 (7.03) — Starting 2016 Model Year
Engine typeCummins — Starting 2016 Model Year
Engine Power370 (276) — Starting 2016 Model Year
Max Dump Height10.3 (3.1) — Starting 2016 Model Year

Hydraulic cycle times (unloaded)

Hydraulic cycle times (unloaded) specifications
Total cycle time11.6 s

Performance

Performance specifications
Tipping Load45,724 lb
