Case

1840

Skid Steer Loader

Operating Weight
5,558 lb
Bucket Capacity
0.30 yd³
Gross Power
51.0 hp
All skid steer loaders

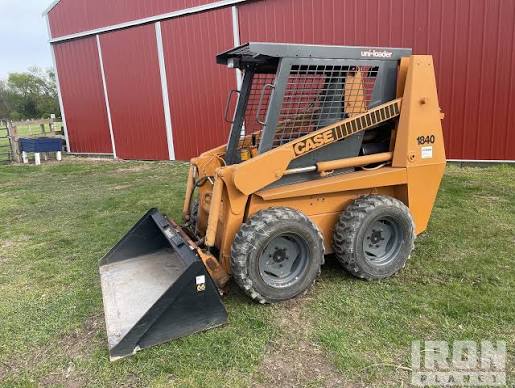

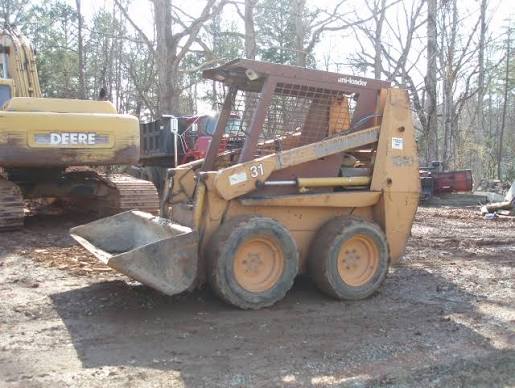

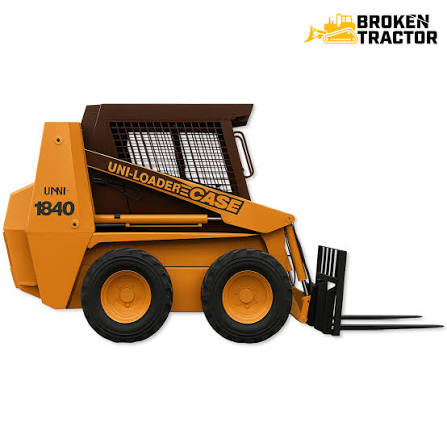

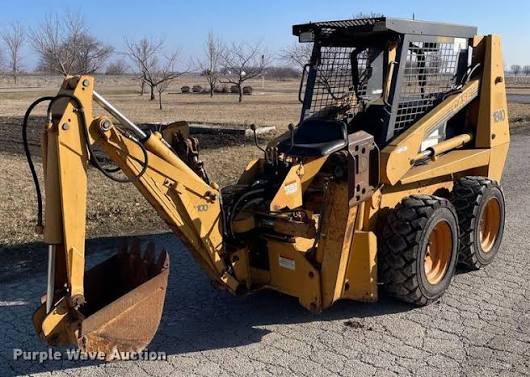

Case 1840 Skid Steer Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,558 lb
Fuel Capacity19.5 gal
Hydraulic System Fluid Capacity10.6 gal
Tire Size7.00 x 15 6PR
Operating Voltage12 V
Alternator Supplied Amperage65 A
Engine Oil Fluid Capacity2.8 gal
Cooling System Fluid Capacity4.5 gal
Chain Box Fluid Capacity - each side1.3 gal
Operating Speed6.3 mph

Engine

Engine specifications
Engine Model4-390
Displacement239 in³
Power Measured @2,000 rpm
Gross Power51.0 hp
Number of Cylinders4
Torque Measured @1,200 rpm
Max Torque179 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.3 gal/min
Relief Valve Pressure2,300 psi
Pump Typegear

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab78 in
Wheelbase37 in
Width Over Tires57 in
Reach at Max Lift and Dump22 in
Length with Bucket126 in
Clearance at Max Lift and Dump84 in
Turning Radius from Center - inc bucket73 in
Turning Radius from Center - machine rear59 in
Length w/o Bucket97 in

Loader

Loader specifications
Bucket Capacity0.30 yd³
Operating Load Rating1,400 lb
Tipping Angle2,800 °
