Case

1845C

Skid Steer Loader

Operating Weight
6,186 lb
Bucket Capacity
0.41 yd³
Max Speed
6.1 mph
Gross Power
57.0 hp
All skid steer loaders

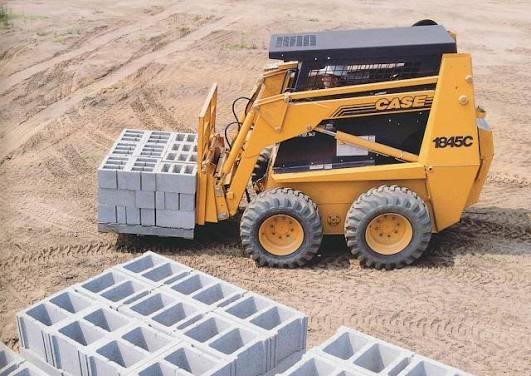

Case 1845C Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,186 lb
Max Speed6.1 mph
Fuel Capacity21.6 gal
Hydraulic System Fluid Capacity10.6 gal
Tire Size12.00 x 16.5 6PR Traction
Operating Voltage12 V
Alternator Supplied Amperage65 A
Engine Oil Fluid Capacity1.7 gal
Cooling System Fluid Capacity4.5 gal
Chain Box Fluid Capacity - each side1.3 gal

Engine

Engine specifications
Engine Model4-390
Displacement239 in³
Power Measured @2,200 rpm
Gross Power57.0 hp
Number of Cylinders4
Torque Measured @1,300 rpm
Engine MakeCase
Stroke5 in
Bore4 in
Fuel TypeDiesel
Torque179 lb-ft
Fuel injectionDirect

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.1 gal/min
Relief Valve Pressure2,300 psi
Dump Time2.9 s
Lower Time1.4 s

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab80 in
Wheelbase41 in
Reach at Max Lift and Dump23 in
Length with Bucket133 in
Length w/o Bucket102 in

Loader

Loader specifications
Bucket Capacity0.41 yd³
Operating Load Rating1,750 lb
Bucket Width0 in
Tipping Load3,545 lb
