Case

40XT

Skid Steer Loader

Operating Weight
5,716 lb
Bucket Capacity
0.60 yd³
Max Speed
6.8 mph
All skid steer loaders

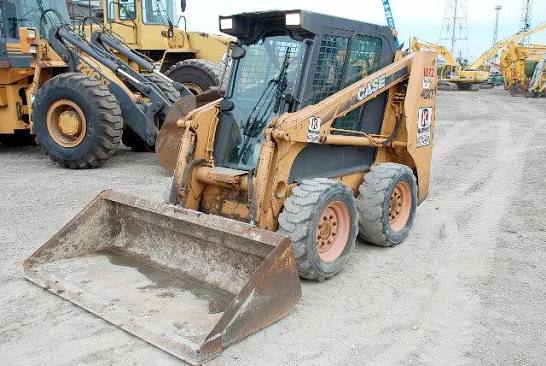

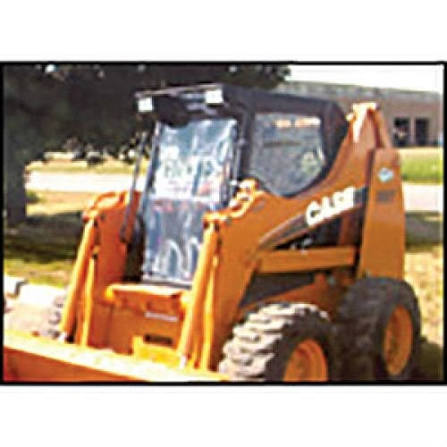

Case 40XT Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,716 lb
Max Speed6.8 mph
Fuel Capacity22.0 gal
Hydraulic System Fluid Capacity13.3 gal
Tire Size10.00x16.5
Operating Voltage12 V
Alternator Supplied Amperage65 A
Engine Oil Fluid Capacity2.8 gal
Cooling System Fluid Capacity4.4 gal
Chain Box Fluid Capacity - each side1.6 gal

Engine

Engine specifications
Engine Model4-390
Displacement239 in³
Power Measured @2,000 rpm
Number of Cylinders4
AspirationNatural

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.1 gal/min
Relief Valve Pressure3,000 psi
Pump Typegear pump

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab76 in
Wheelbase42 in
Width Over Tires60 in
Reach at Max Lift and Dump24 in
Length with Bucket124 in
Clearance at Max Lift and Dump90 in
Turning Radius from Center - inc bucket73 in
Turning Radius from Center - machine rear58 in
Length w/o Bucket101 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating1,500 lb
Tipping Angle3,000 °
Breakout Force3,788 psi
