Case

420

Skid Steer Loader

Operating Weight
5,813 lb
Bucket Capacity
0.50 yd³
Max Speed
6.5 mph
Gross Power
56.0 hp
All skid steer loaders

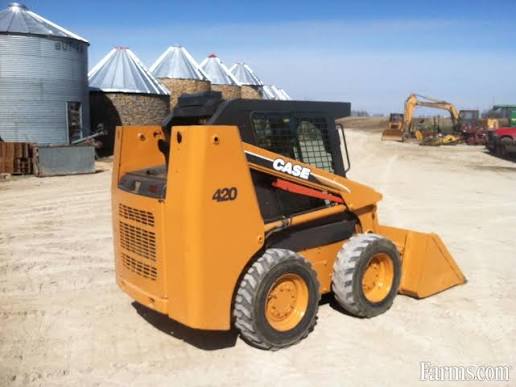

Case 420 Skid Steer Loader
1 / 5
Image 1 of 5
Image: whitemountainlumber.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,813 lb
Max Speed6.5 mph
Fuel Capacity22.0 gal
Hydraulic System Fluid Capacity13.2 gal
Tire Size10.00 x 16.5
Operating Voltage12 V
Alternator Supplied Amperage55 A
Engine Oil Fluid Capacity2.8 gal
Cooling System Fluid Capacity4.5 gal
Chain Box Fluid Capacity - each side2.0 gal
Operating Speed6.9 mph

Engine

Engine specifications
Engine Model422T/M2 Tier II certified
Displacement134 in³
Power Measured @2,900 rpm
Gross Power56.0 hp
Number of Cylinders4
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.5 gal/min
Relief Valve Pressure3,050 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab76 in
Wheelbase42 in
Width Over Tires50 in
Reach at Max Lift and Dump24 in
Length with Bucket124 in
Clearance at Max Lift and Dump90 in
Turning Radius from Center - inc bucket73 in
Turning Radius from Center - machine rear58 in
Length w/o Bucket101 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Operating Load Rating1,750 lb
Tipping Angle3,500 °
