Case

420 III

Skid Steer Loader

Operating Weight
6,605 lb
Bucket Capacity
0.50 yd³
Max Speed
7.3 mph
All skid steer loaders

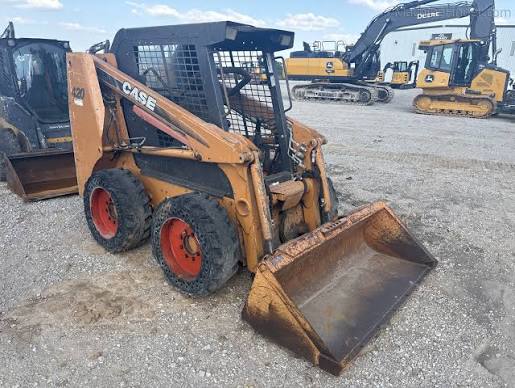

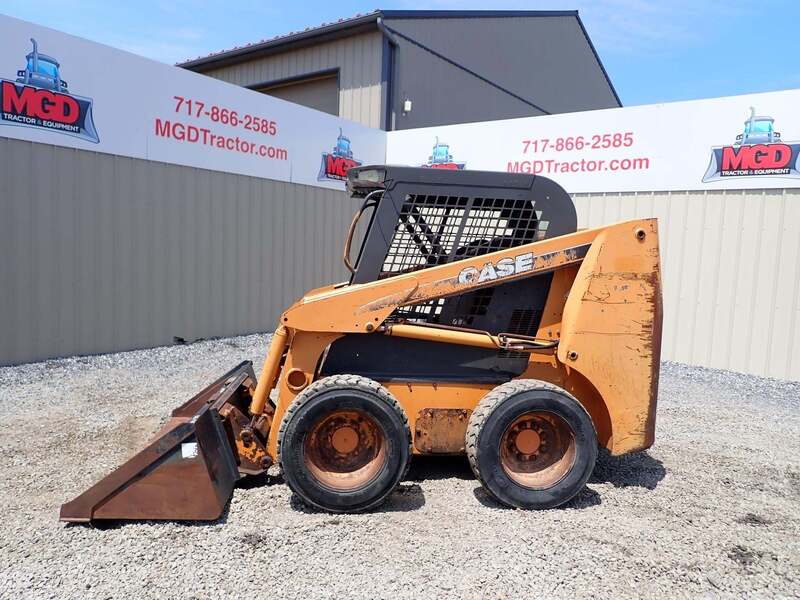

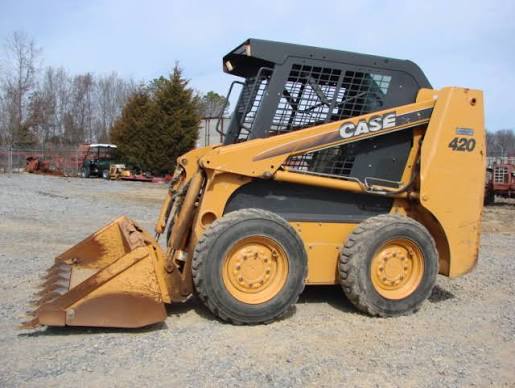

Case 420 III Skid Steer Loader
1 / 5
Image 1 of 5
Image: machinerypete.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,605 lb
Max Speed7.3 mph
Fuel Capacity22.1 gal
Hydraulic System Fluid Capacity13.3 gal
Tire Size10.00 x 16.5 8 ply
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Fluid Capacity2.3 gal
Cooling System Fluid Capacity3.1 gal
Chain Box Fluid Capacity - each side2.1 gal
Operating Speed7.3 mph

Engine

Engine specifications
Engine Model432T/M3 diesel Tier III certified
Displacement195 in³
Power Measured @2,900 rpm
Number of Cylinders4
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.8 gal/min
Relief Valve Pressure3,050 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab79 in
Wheelbase43 in
Width Over Tires60 in
Reach at Max Lift and Dump23 in
Length with Bucket130 in
Clearance at Max Lift and Dump97 in
Turning Radius from Center - inc bucket76 in
Turning Radius from Center - machine rear52 in
Length w/o Bucket103 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Operating Load Rating1,850 lb
Tipping Angle3,699 °
Breakout Force4,200 psi
