Case

435

Skid Steer Loader

Operating Weight
6,830 lb
Bucket Capacity
0.71 yd³
Max Speed
11.7 mph
Gross Power
72.0 hp
All skid steer loaders

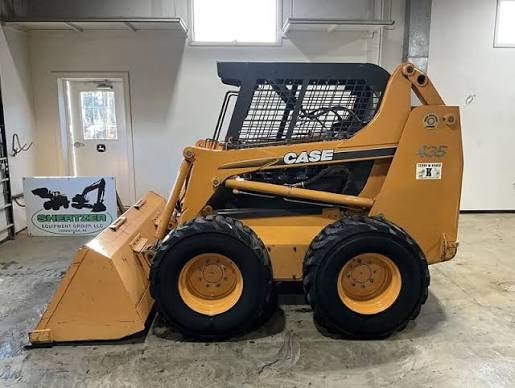

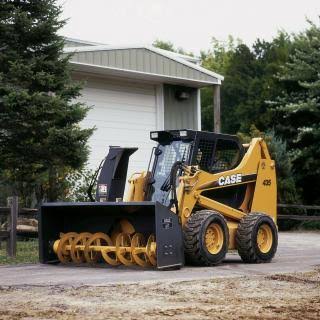

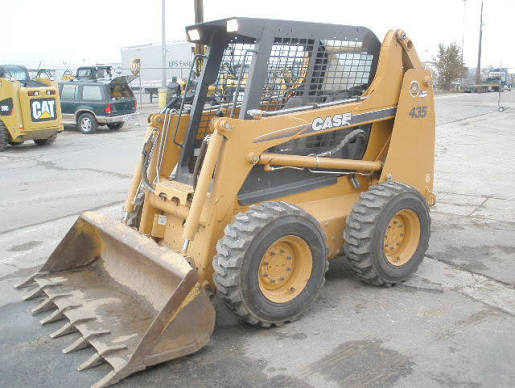

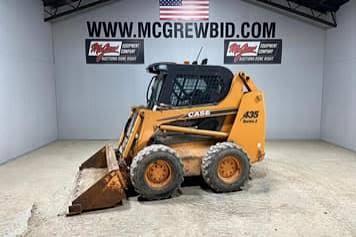

Case 435 Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,830 lb
Max Speed11.7 mph
Fuel Capacity17.5 gal
Hydraulic System Fluid Capacity5.9 gal
Tire Size12.00 x 16.5
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Fluid Capacity2.2 gal
Cooling System Fluid Capacity4.5 gal
Chain Box Fluid Capacity - each side2.0 gal

Engine

Engine specifications
Engine ModelFamily III 334T/M2 Tier II certified
Displacement205 in³
Power Measured @2,300 rpm
Gross Power72.0 hp
Number of Cylinders3
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity21.0 gal/min
Relief Valve Pressure3,050 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab80 in
Wheelbase46 in
Width Over Tires61 in
Reach at Max Lift and Dump30 in
Length with Bucket135 in
Clearance at Max Lift and Dump91 in
Turning Radius from Center - inc bucket80 in
Turning Radius from Center - machine rear79 in
Length w/o Bucket103 in

Loader

Loader specifications
Bucket Capacity0.71 yd³
Operating Load Rating2,300 lb
Tipping Angle4,600 °
