CaseCase
440

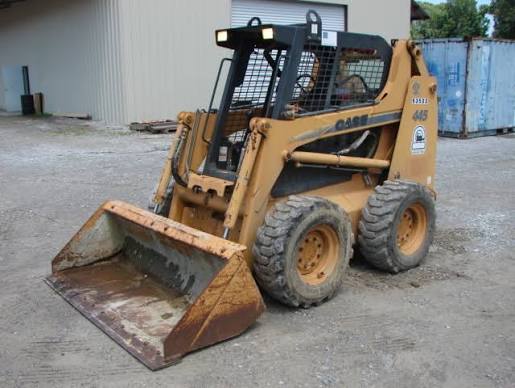

Skid Steer Loader
32 specifications
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 8,120 lb |
|---|---|
| Max Speed | 7.0 mph |
| Fuel Capacity | 17.4 gal |
| Hydraulic System Fluid Capacity | 11.0 gal |
| Tire Size | 12.00 x 16.5 10 ply |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 A |
| Engine Oil Fluid Capacity | 2.3 gal |
| Cooling System Fluid Capacity | 3.1 gal |
| Chain Box Fluid Capacity - each side | 2.1 gal |
| Operating Speed | 7.0 mph |
Engine
| Engine Model | 432T/M3 diesel Tier III certified |
|---|---|
| Displacement | 195 in³ |
| Power Measured @ | 2,300 rpm |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
Hydraulic System
| Pump Flow Capacity | 23.9 gal/min |
|---|---|
| Relief Valve Pressure | 3,050 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 84 in |
| Wheelbase | 46 in |
| Width Over Tires | 73 in |
| Reach at Max Lift and Dump | 37 in |
| Length with Bucket | 132 in |
| Clearance at Max Lift and Dump | 91 in |
| Turning Radius from Center - inc bucket | 84 in |
| Turning Radius from Center - machine rear | 54 in |
| Length w/o Bucket | 104 in |
Loader
| Bucket Capacity | 0.60 yd³ |
|---|---|
| Operating Load Rating | 2,500 lb |
| Tipping Angle | 5,000 ° |
| Breakout Force | 5,000 psi |
