Case

465 III

Skid Steer Loader

Operating Weight
8,876 lb
Bucket Capacity
0.71 yd³
Max Speed
6.3 mph
Gross Power
83.2 hp
All skid steer loaders

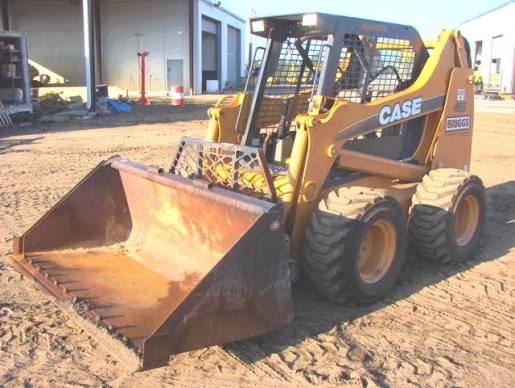

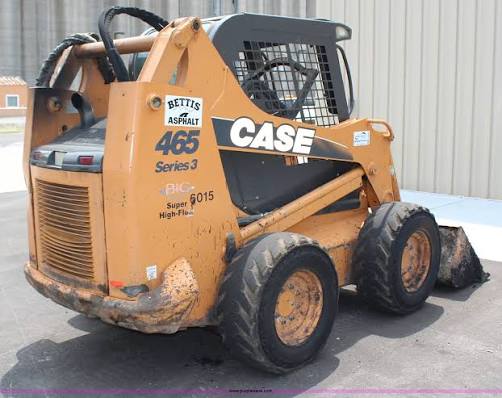

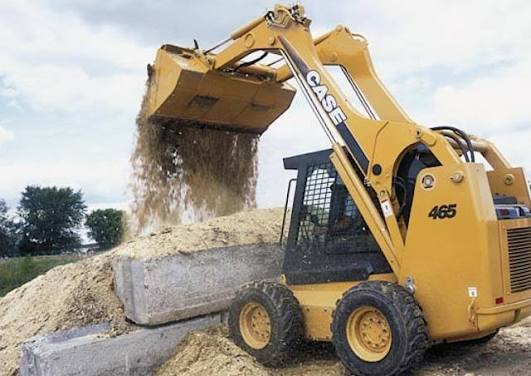

Case 465 III Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,876 lb
Max Speed6.3 mph
Fuel Capacity20.2 gal
Hydraulic System Fluid Capacity17.1 gal
Tire Size12.00 x 16.5 10 ply
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Fluid Capacity3.2 gal
Cooling System Fluid Capacity3.1 gal
Chain Box Fluid Capacity - each side2.1 gal
Operating Speed6.3 mph

Engine

Engine specifications
Engine Model445T/M3 diesel Tier III certified
Displacement275 in³
Power Measured @2,300 rpm
Gross Power83.2 hp
Number of Cylinders4
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity22.0 gal/min
Relief Valve Pressure3,050 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab84 in
Wheelbase52 in
Width Over Tires73 in
Reach at Max Lift and Dump40 in
Length with Bucket144 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - inc bucket86 in
Turning Radius from Center - machine rear56 in
Length w/o Bucket113 in

Loader

Loader specifications
Bucket Capacity0.71 yd³
Operating Load Rating3,001 lb
Tipping Angle6,001 °
Breakout Force6,500 psi
