Case

480C

Skip Loader

Gross Power
48.0 hp
Net Power
43.0 hp
All skip loaders

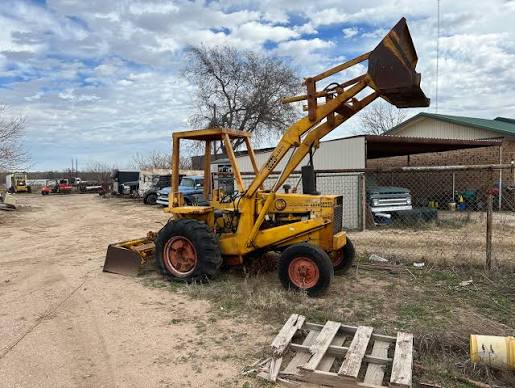

Case 480C Skip Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity22.0 gal
Hydraulic System Fluid Capacity12.0 gal
Operating Voltage12 V
Oil System Fluid Capacity1.8 gal
Alternator Supplied Amperage42 A
Cooling System Fluid Capacity5.3 gal
Tire Size Front - 2wd / 4wd7.50x16
Max Weight10,757 lb

Engine

Engine specifications
Engine ModelG188D
Displacement189 in³
Power Measured @2,100 rpm
Gross Power48.0 hp
Net Power43.0 hp
Number of Cylinders4
Engine MakeJ.I. Case
Stroke4 in
Bore4 in

Dimensions

Dimensions specifications
Ground Clearance11 in
Wheelbase80 in
Transport Width80 in
Transport Length126 in
Height to Top of Suspended Cab102 in
Rear Tread Range66 in
Front Wheel Tread Width62 in
Shipping weight5,282 lb

Transmission

Transmission specifications
Max Speed20.4 mph
Max Speed - Reverse25.0 mph
Number of Forward Gears8
Number of Reverse Gears8

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14.9x24

Backhoe

Backhoe specifications
Dig Depth144 in
Bucket Dig Force6,383 lb
Reach From Swivel187 in
Bucket Dig Force - Extended6,192 lb
Dig Depth - Extended180 in
Load Height - Extended104 in
Load Height100 in
Reach From Swivel - Extended222 in

Loader

Loader specifications
Reach at Max Dump Height28 in
Bucket Breakout Force5,700 lb
Bucket Width74 in
Clearance at Max Dump Height103 in
