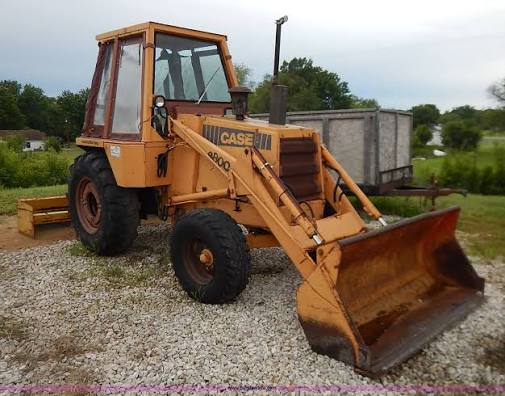

CaseCase
480C
Skip Loader
42 specifications
1 / 5
Image 1 of 5
Specifications
47 data points
Operating Specifications
| Fuel Capacity | 23.5 gal |
|---|---|
| Hydraulic System Fluid Capacity | 10.8 gal |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 1.8 gal |
| Alternator Supplied Amperage | 39 A |
| Cooling System Fluid Capacity | 3.5 gal |
| Tire Size Front - 2wd / 4wd | 7.50x16 |
| Max Weight | 9,302 lb |
| Axle load - front | 9,000 lb |
Engine
| Engine Model | G188D |
|---|---|
| Displacement | 189 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 52.0 hp |
| Net Power | 47.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Engine Make | J.I. Case |
| Bore | 4 in |
| Stroke | 4 in |
| Net Max Torque | 138 lb-ft |
Hydraulic System
| Pump Flow Capacity | 23.9 gal/min |
|---|
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Wheelbase | 80 in |
| Transport Width | 84 in |
| Transport Length | 126 in |
| Height to Top of Suspended Cab | 101 in |
| Rear Tread Range | 66 in |
| Front Wheel Tread Width | 62 in |
| Shipping weight | 5,282 lb |
Transmission
| Max Speed | 20.9 mph |
|---|---|
| Max Speed - Reverse | 18.3 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Power shuttle |
Tires & Wheels
| Rear Tires Size | 14.9x24 |
|---|
Backhoe
| Dig Depth | 145 in |
|---|---|
| Bucket Dig Force | 7,597 lb |
| Reach From Swivel | 190 in |
| Bucket Dig Force - Extended | 7,747 lb |
| Dig Depth - Extended | 182 in |
| Load Height - Extended | 104 in |
| Load Height | 101 in |
| Reach From Swivel - Extended | 224 in |
Loader
| Reach at Max Dump Height | 28 in |
|---|---|
| Bucket Breakout Force | 5,700 lb |
| Bucket Width | 64 in |
| Clearance at Max Dump Height | 106 in |
