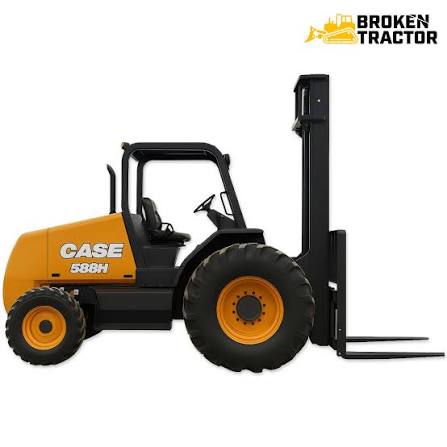

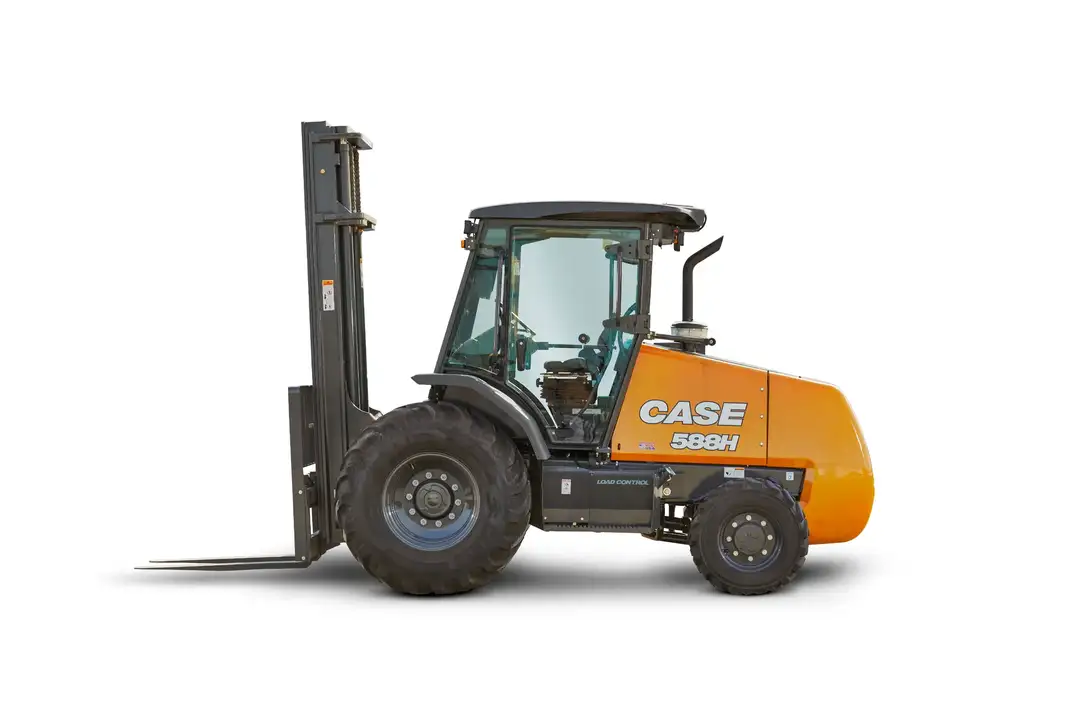

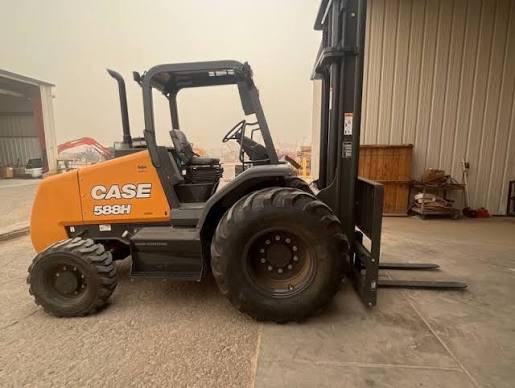

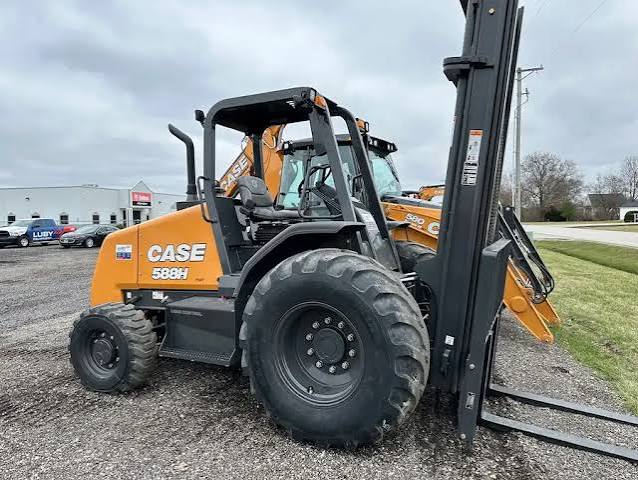

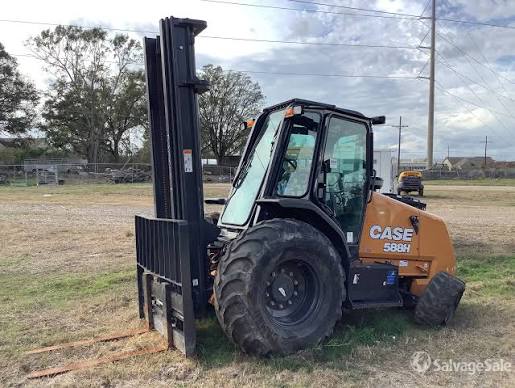

Case 588H Forklift
1 / 5
Image 1 of 5
Image: casece.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,507 lb
Front Tire Size19.5 L x 24
Rear Tire Size12 L x 16.5

Engine

Engine specifications
Engine ModelFPT F5HFL463D
Displacement207,481 in³
Power Measured @2,200 rpm
Number of Cylinders4
Torque Measured @1,400 rpm
Stroke4 in
Bore4 in
Power74.0 hp
Engine TypeDiesel 4-stroke turbocharged
Torque233 lb-ft
Alternator120 A
Emission Tier LevelTier 4
FuelDiesel

Dimensions

Dimensions specifications
Ground Clearance10 in
Wheelbase84 in
Overall Length205 in
Overall Width89 in
Turning Radius142 in
Overall Height - mast lowered126 in
Max Fork Height180 in

Mast

Mast specifications
Load Capacity7,998 lb
Load Center24 in
Mast Tip Forward45 °
Mast Tip Rear15 °
Lift height- largest mast264 in
Lift height-smallest mast180 in
