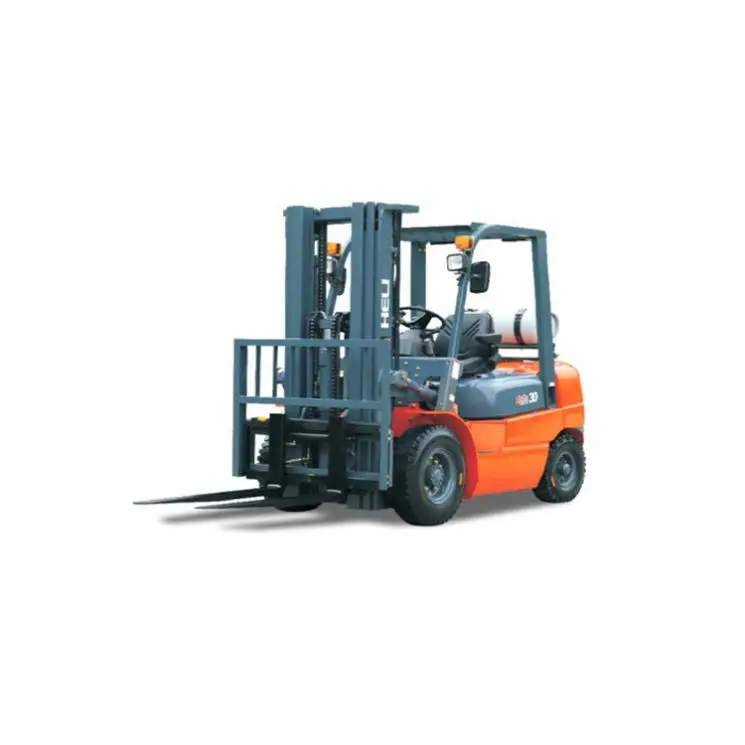

Heli
Komatsu
FG25T-12
Forklift
32 specifications
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 9,326 lb |
|---|---|
| Max Speed | 11.2 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | front 28x9-15-12PR rear 6.50-10-10PR |
Engine
| Engine Model | H25 |
|---|---|
| Power Measured @ | 2,300 rpm |
| Torque Measured @ | 1,600 rpm |
| Power | 57.3 hp |
| Fuel Type | gasoline |
| Torque | 132 lb-ft |
Dimensions
| Ground Clearance | 6 in |
|---|---|
| Wheelbase | 67 in |
| Overall Width | 49 in |
| Turning Radius | 95 in |
| Overall Height - mast lowered | 84 in |
| Length to Fork Face | 106 in |
| Height to Top of Overhead Guard | 83 in |
| Max Fork Height | 119 in |
| Right Angle Stack | 84 in |
Mast
| Load Capacity | 6,614 lb |
|---|---|
| Load Center | 20 in |
| Lift Speed | 1.1 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 12 ° |
| Max Fork Spread | 40 in |
