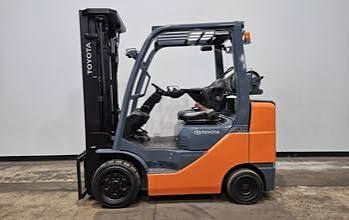

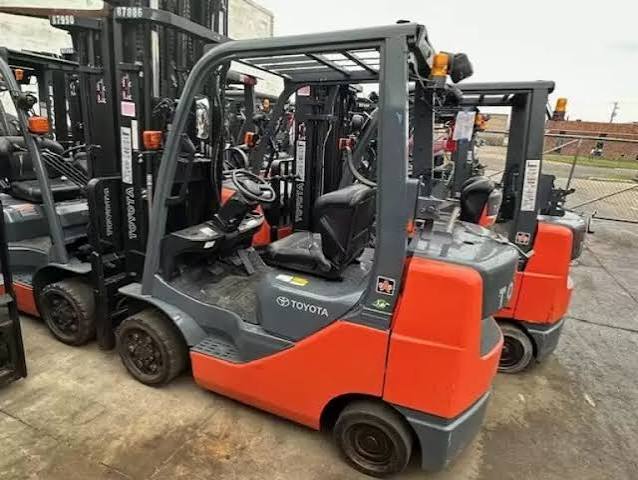

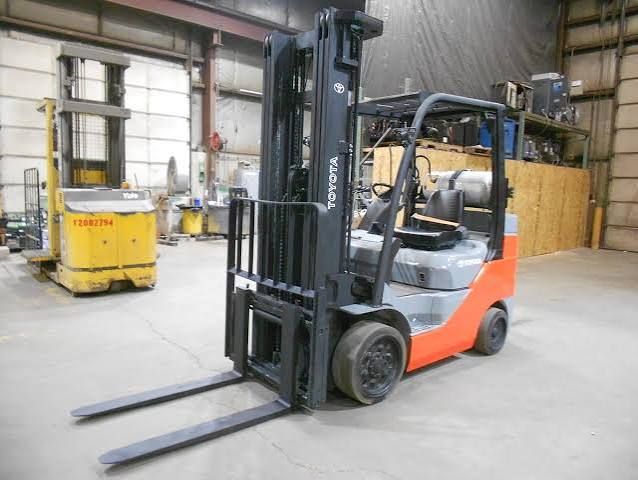

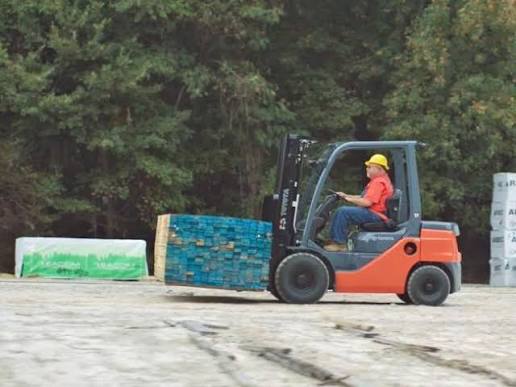

Toyota
Komatsu
FG25T-12
Forklift
32 specifications
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 9,259 lb |
|---|---|
| Max Speed | 10.6 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Cushion |
| Fuel Capacity | 11.9 gal |
| Hydraulic System Relief Valve Pressure | 2,275 psi |
| Hydraulic System Fluid Capacity | 20.0 gal |
Engine
| Engine Model | 4Y-ECS |
|---|---|
| Displacement | 136 in³ |
| Power Measured @ | 2,570 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 2,100 rpm |
| Engine Make | TOYOTA |
| Power | 51.0 hp |
| Torque | 118 lb-ft |
Dimensions
| Wheelbase | 59 in |
|---|---|
| Overall Width | 44 in |
| Turning Radius | 80 in |
| Length to Fork Face | 98 in |
| Gradeability | 25.0 % |
| Height to Top of Overhead Guard | 81 in |
| Max Fork Height | 132 in |
| Free lift | 5 in |
| Fork Spread Min-outer edge to edge | 10 in |
| Fork Spread Max | 39 in |
Brakes & Steering
| Service brake | Hydraulic |
|---|---|
| Parking brake | Foot |
Mast
| Load Capacity | 5,952 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.2 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 5 ° |
Performance
| Drawbar Pull Max -Full Load | 40,786 lb |
|---|---|
| Drawbar Pull Max -No Load | 17,196 lb |
