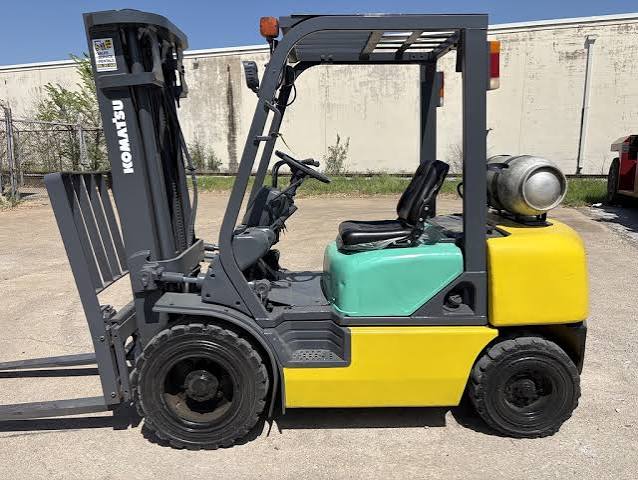

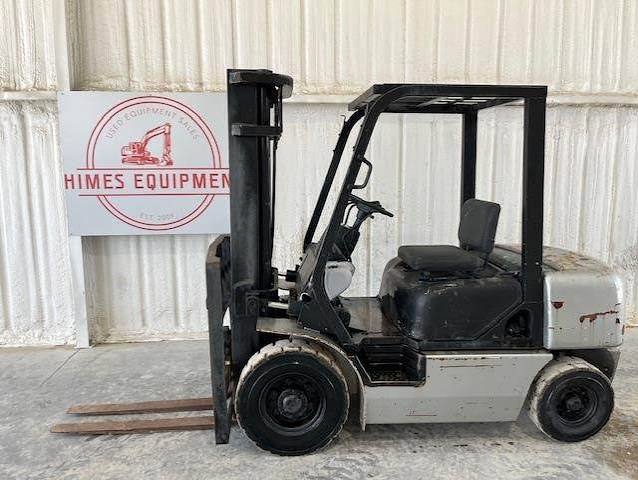

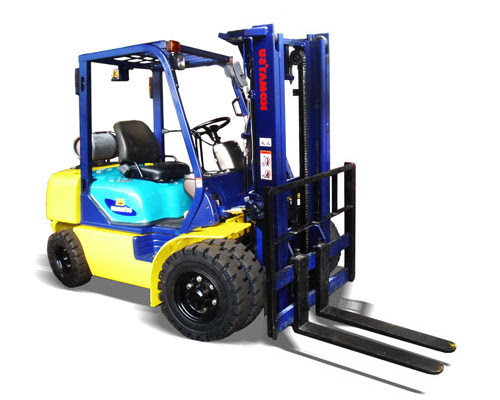

Komatsu FG25T-12 Forklift
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,389 lb
Max Speed10.0 mph
Number of Front Wheels2
Number of Rear Wheels2
Fuel Capacity14.6 gal
Hydraulic Tank13.8 gal

Engine

Engine specifications
Engine Model4D94E
Displacement170 in³
Power Measured @2,450 rpm
Number of Cylinders4
Torque Measured @1,800 rpm
Bore4 in
Stroke4 in
Power65.0 hp
Fuel TypeDiesel
Torque141 lb-ft
Air cleanerCyclone

Dimensions

Dimensions specifications
Ground Clearance7 in
Wheelbase66 in
Overall Width46 in
Turning Radius90 in
Overall Height - mast lowered86 in
Length to Fork Face102 in
Height to Top of Overhead Guard81 in
Max Fork Height128 in
Right Angle Stack108 in

Mast

Mast specifications
Load Capacity5,000 lb
Load Center24 in
Lift Speed1.3 mph
Mast Tip Forward6 °
Mast Tip Rear12 °
Lower Speed1.1 mph
