Case
JCB
VMT400
Smooth Drum Roller
22 specifications
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 14,551 lb |
|---|---|
| Fuel Capacity | 50.2 gal |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 16.4 gal |
| Engine Oil Capacity | 3.0 gal |
| Alternator Supplied Amperage | 65 A |
| Cooling System Fluid Capacity | 5.3 gal |
Engine
| Engine Model | 4-390 |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 78.0 hp |
| Net Power | 69.0 hp |
| Number of Cylinders | 4 |
| Engine Make | Case |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 111 in |
| Wheelbase | 91 in |
| Overall Length | 174 in |
| Overall Width | 85 in |
Drum
| Vibration Frequency 1 | 29 vpm |
|---|---|
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 26,528 lb |
| Drum thickness | 1 in |
| Pad Height | 4 in |
| Pad Surface Area | 47 in³ |

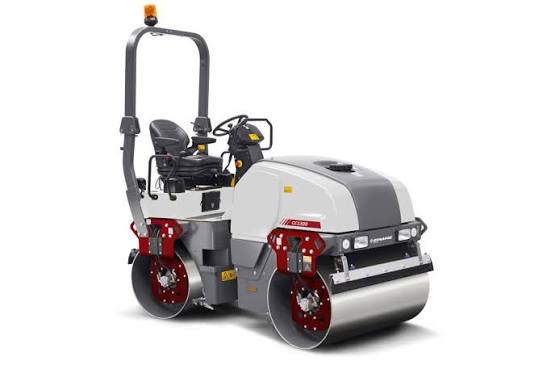

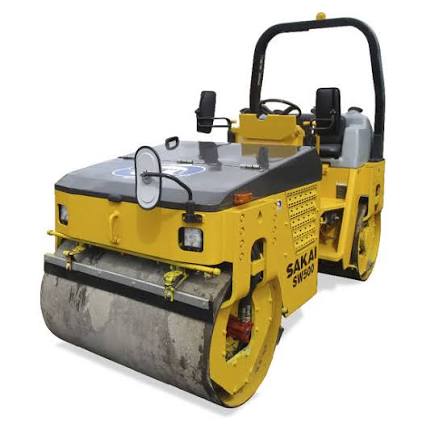

Comparable machines
