Dynapac

CC1300 PLUS

Smooth Drum Roller

Operating Weight
8,885 lb
Max Speed
6.3 mph
Drum Width
51 in
Gross Power
59.1 hp
All smooth drum rollers

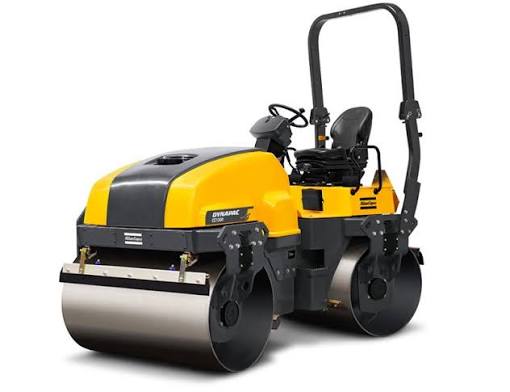

Dynapac CC1300 PLUS Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,885 lb
Operating weight ROPS8,598 lb
Max Speed6.3 mph
Fuel Capacity13.3 gal
Water Spray Tank Fluid Capacity52.9 gal
Oscillating angle10 °
Steering Angle30 °

Engine

Engine specifications
Engine ModelV2203-M (IIIA)
Gross Power59.1 hp
Engine MakeKubota

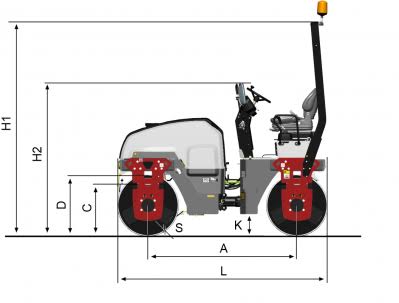

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab109 in
Wheelbase76 in
Overall Length107 in
Overall Width57 in
Turning Radius - Inside117 in
Gradeability37.0 %
Turning Radius - Outside168 in
Curb clearance24 in
Overhang Rear2 in
Overhang Front2 in

Drum

Drum specifications
Drum Width51 in
Drum Diameter32 in
Vibration Frequency 152 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High8,093 lb
Vibration Frequency 253 vpm
Static Linear Load7 lb-ft
Centrifugal Force - Low7,419 lb
Drum thickness1 in
