BOMAG

BW 120 AC-5

Smooth Drum Roller

Operating Weight
5,401 lb
Max Speed
6.2 mph
Drum Width
47 in
Gross Power
33.0 hp
All smooth drum rollers

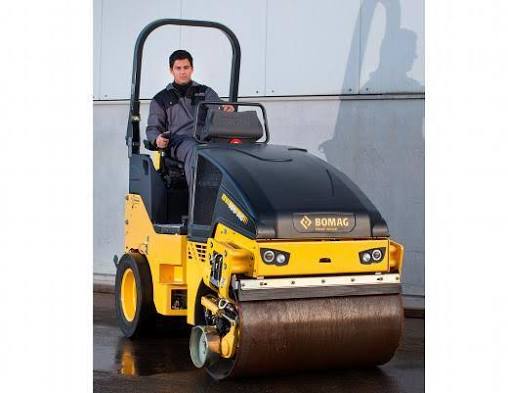

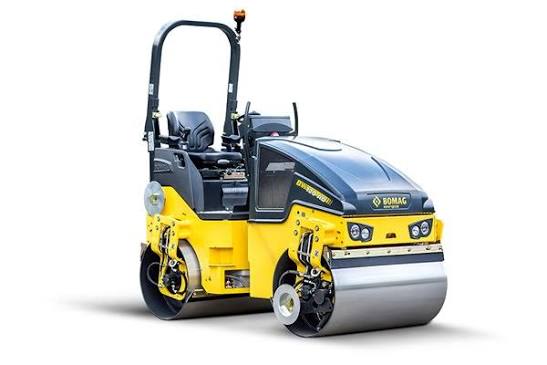

BOMAG BW 120 AC-5 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,401 lb
Max Speed6.2 mph
Fuel Capacity9.2 gal
Operating Width50 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelD1803
Power Measured @2,600 rpm
Gross Power33.0 hp
Number of Cylinders3
Engine MakeKubota
MakeKubota
Cooling methodWater

Weights

Weights specifications
Grossweight6,504 lb

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab72 in
Wheelbase69 in
Overall Length100 in
Overall Width50 in
Turning Radius - Inside97 in
Drum Diameter - Front28 in
Drum Diameter - Rear28 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeHydromec

Tires & Wheels

Tires & Wheels specifications
Tires9.5/65-15

General Specifications

General Specifications specifications
Engine typeKubota D1803 — Starting 2024 Model Year
DRUM WIDTH IN. (CM)47.2 (120) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)96.5 (245) — Starting 2024 Model Year
WIDTH IN. (CM)50.1 (127.2) — Starting 2024 Model Year
FREQUENCY HZ63/67 — Starting 2024 Model Year

Drum

Drum specifications
Drum Width47 in
Vibration Frequency 163 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High9,217 lb
Vibration Frequency 267 vpm
Static Linear Load5 lb-ft
Vibration Frequency—

Steering System

Steering System specifications
Steering MethodHydrostatic
Oscillating angle3 °
SystemOscillatory Articulation
Steering Angle32 °
