Dynapac

CC900S

Smooth Drum Roller

Operating Weight
3,759 lb
Max Speed
5.6 mph
Drum Width
36 in
Gross Power
24.2 hp
All smooth drum rollers

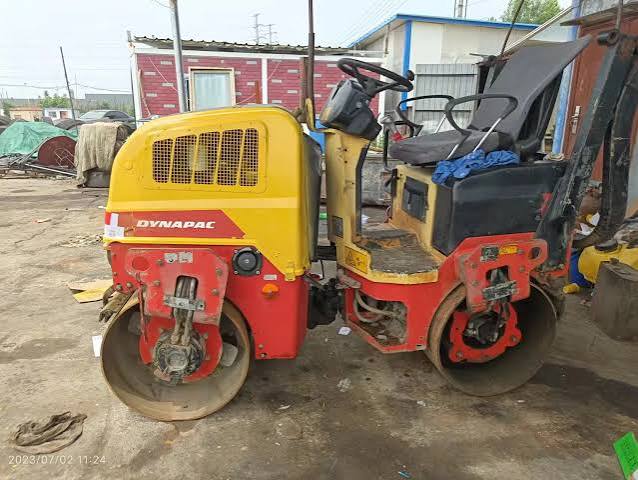

Dynapac CC900S Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,759 lb
Operating weight ROPS3,616 lb
Max Speed5.6 mph
Fuel Capacity6.1 gal
Water Spray Tank Fluid Capacity29.1 gal
Oscillating angle13 °
Steering Angle32 °

Engine

Engine specifications
Engine ModelD1105-E4B
Power Measured @2,800 rpm
Gross Power24.2 hp
Aspirationwatercooled
Engine MakeKubota 2351

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab91 in
Wheelbase5 in
Overall Length7 in
Overall Width39 in
Turning Radius - Outside102 in
Overhang Front2 in
Overhang Rear2 in

General Specifications

General Specifications specifications
Engine typeKubota -D1105 (T4f) — Starting 2024 Model Year
DRUM WIDTH IN. (CM)35 (88) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)110 (279) — Starting 2024 Model Year
WIDTH IN. (CM)38 (96) — Starting 2024 Model Year
FREQUENCY VPM (HZ)4,200 (70) — Starting 2024 Model Year

Drum

Drum specifications
Drum Width36 in
Drum Diameter23 in
Vibration Frequency 156 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High3,822 lb
Vibration Frequency 270 vpm
Static Linear Load4 lb-ft
Centrifugal Force - Low2,473 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
