Ingersoll Rand

DD14S

Smooth Drum Roller

Operating Weight
3,172 lb
Max Speed
5.0 mph
Drum Width
36 in
All smooth drum rollers

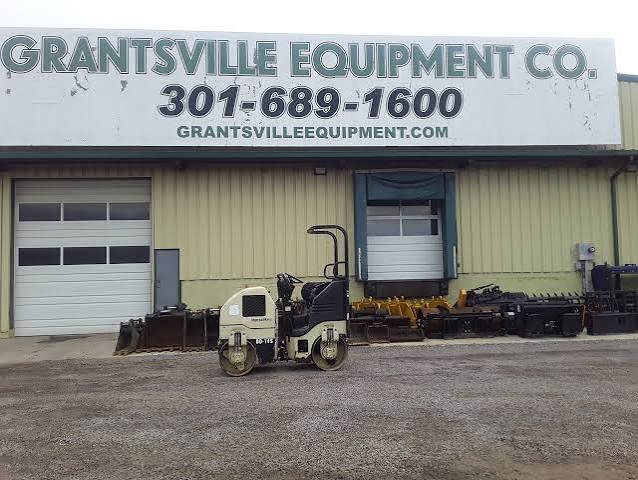

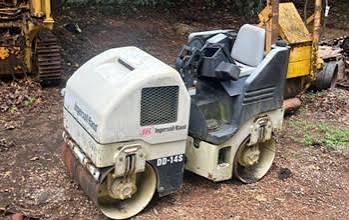

Ingersoll Rand DD14S Smooth Drum Roller
1 / 5
Image 1 of 5
Image: constructionequipmentguide.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,172 lb
Max Speed5.0 mph
Fuel Capacity7.8 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity9.1 gal
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine ModelD722
Net Power16.9 hp

Dimensions

Dimensions specifications
Height - Top of Cab89 in
Wheelbase5 in
Overall Length7 in
Overall Width40 in

Drum

Drum specifications
Drum Width36 in
Drum Diameter22 in
Vibration Frequency 167 vpm
Nominal Amplitude - Med0 in
Centrifugal Force - MEd3,507 lb
