BOMAG

BW 900-2

Smooth Drum Roller

Operating Weight
2,924 lb
Max Speed
4.4 mph
Drum Width
36 in
Gross Power
20.0 hp
All smooth drum rollers

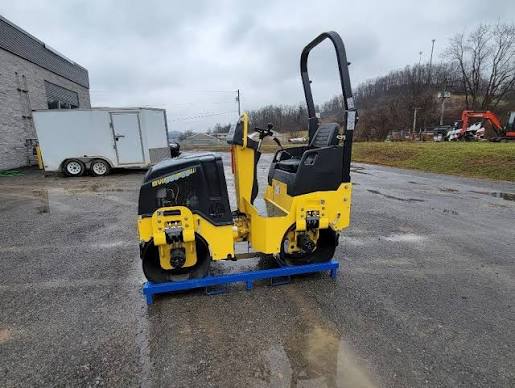

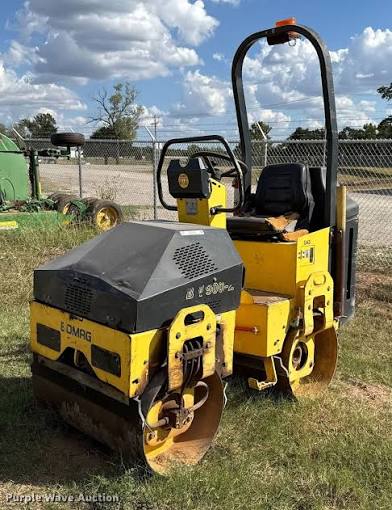

BOMAG BW 900-2 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: constructionequipmentguide.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,924 lb
Max Speed4.4 mph
Fuel Capacity9.0 gal
Operating Width89 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelGX620
Power Measured @3,600 rpm
Gross Power20.0 hp
Number of Cylinders2

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab93 in
Wheelbase4 in
Overall Length7 in
Overall Width36 in

Drum

Drum specifications
Drum Width36 in
Drum Diameter22 in
Vibration Frequency 165 vpm
Static Linear Load3 lb-ft
Frequency65 vpm
Nominal Amplitude - Med0 in
Centrifugal Force - MEd3,147 lb
