Hamm
Caterpillar
CB24B

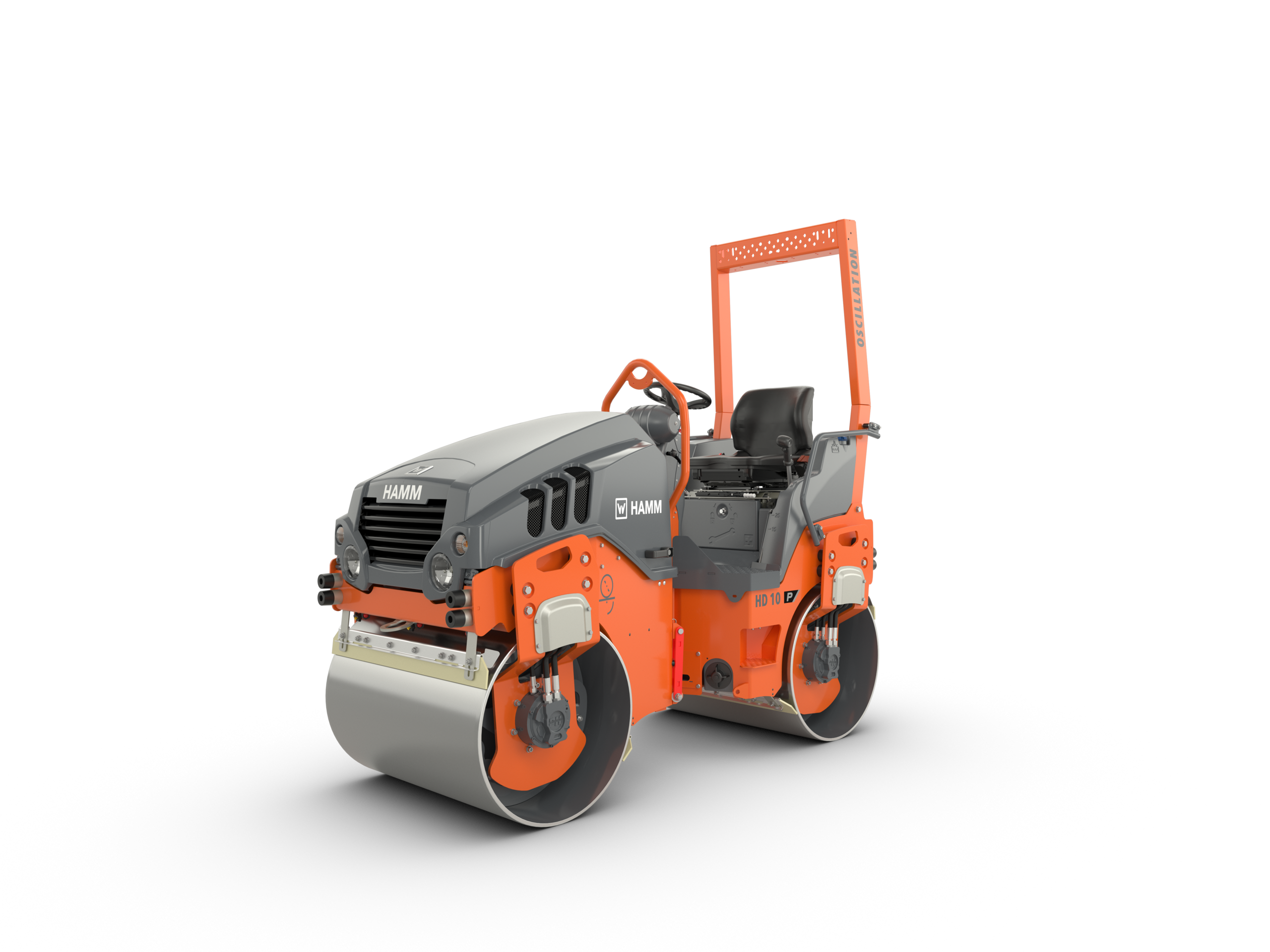

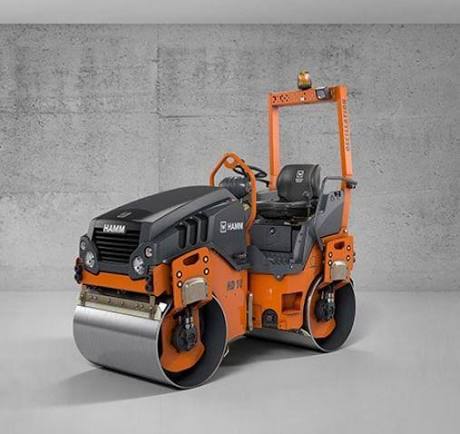

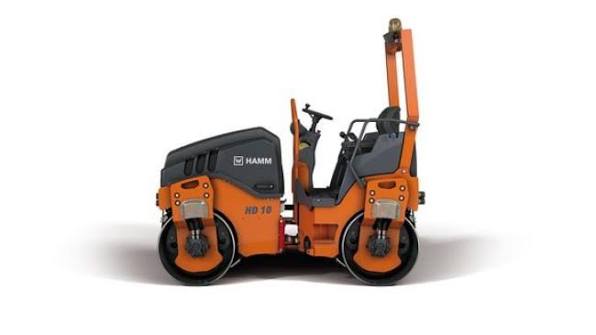

Smooth Drum Roller
36 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 7,143 lb |
|---|---|
| Operating weight ROPS | 5,567 lb |
| Max Speed | 7.5 mph |
| Fuel Capacity | 11.1 gal |
| Water Spray Tank Fluid Capacity | 47.6 gal |
| Oscillating angle | 8 ° |
Engine
| Engine Model | D1503 |
|---|---|
| Power Measured @ | 2,700 rpm |
| Gross Power | 22.9 hp |
| Net Power | 30.7 hp |
| Number of Cylinders | 3 |
| Engine Make | KUBOTA |
| Emission Tier Level | EU Stage IIIA |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Wheelbase | 67 in |
| Overall Length | 100 in |
| Overall Width | 44 in |
| Height - Top of ROPS/FOPS | 98 in |
| Turning Radius - Inside | 98 in |
General Specifications
| Engine type | Kubota D1703 — Starting 2024 Model Year |
|---|---|
| DRUM WIDTH IN. (CM) | 39.4 (100) — Starting 2024 Model Year |
| INSIDE TURN RADIUS IN. (CM) | 97.2 (247) — Starting 2024 Model Year |
| WIDTH IN. (CM) | 43.7 (111) — Starting 2024 Model Year |
| FREQUENCY HZ | 65/51 — Starting 2024 Model Year |
Drum
| Drum Width | 39 in |
|---|---|
| Drum Diameter | 28 in |
| Vibration Frequency 1 | 67 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 10,341 lb |
| Vibration Frequency 2 | 52 vpm |
| Static Linear Load | 6 lb-ft |
| Centrifugal Force - Low | 6,295 lb |
| Nominal Amplitude - Low | 0 in |
| Drum thickness | 1 in |
| Oscillation force , rear -1 | 8,992 lb |
| Oscillation frequency , rear - 1 | 39 vpm |
| Tangential amplitude , rear - 1 | 0 in |
| Oscillation force , rear -2 | 5,171 lb |
| Oscillation frequency , rear - 2 | 30 vpm |
| Tangential amplitude , rear - 2 | 0 in |
