Komatsu

JV40CW-3

Smooth Drum Roller

Operating Weight
7,937 lb
Max Speed
7.5 mph
Drum Width
51 in
Gross Power
27.7 hp
All smooth drum rollers

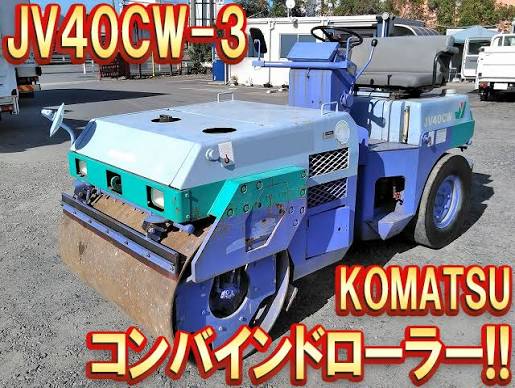

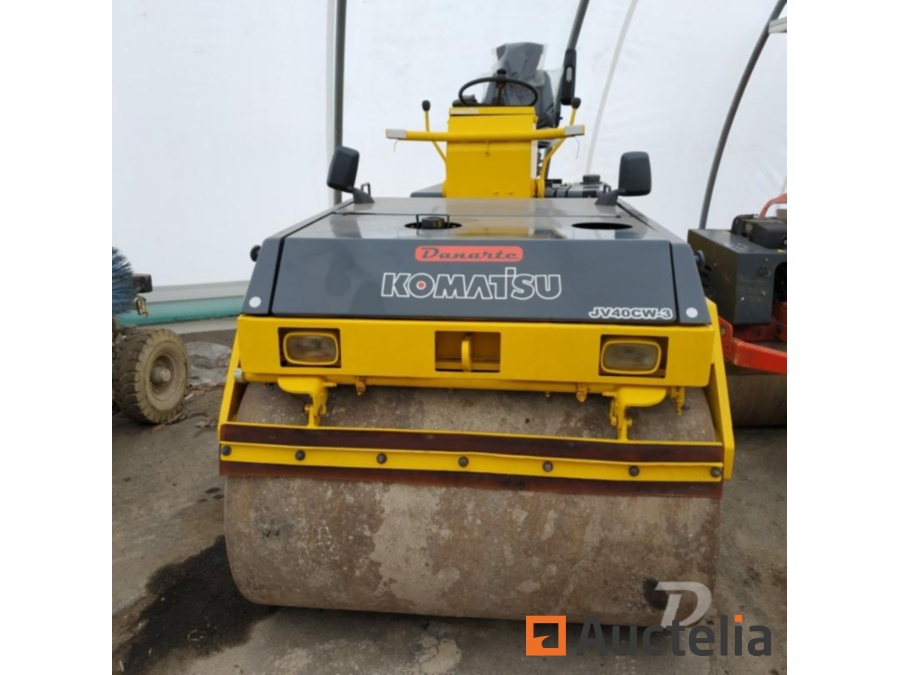

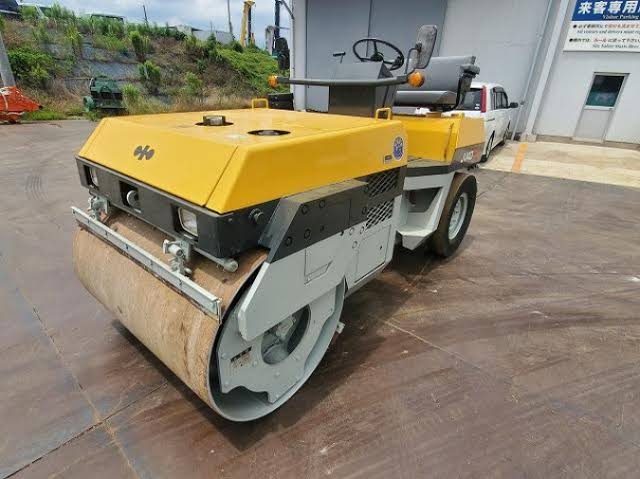

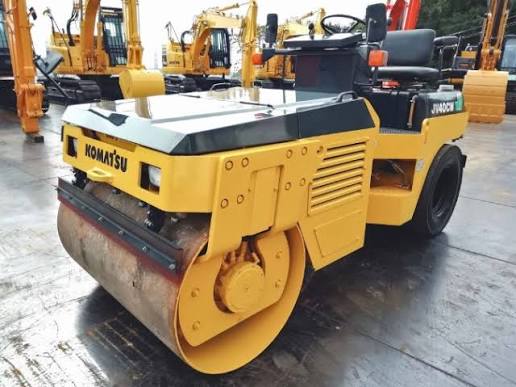

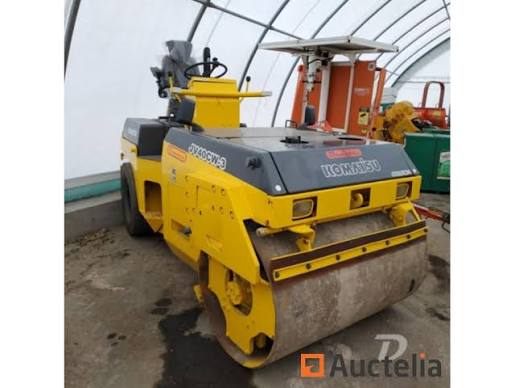

Komatsu JV40CW-3 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: auctelia.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,937 lb
Max Speed7.5 mph
Fuel Capacity12.5 gal

Engine

Engine specifications
Engine Model3D84E
Displacement87 in³
Power Measured @2,700 rpm
Gross Power27.7 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab70 in
Wheelbase8 in
Overall Length10 in
Overall Width55 in
Drum Diameter - Front32 in

Drum

Drum specifications
Drum Width51 in
Drum Diameter32 in
Vibration Frequency 155 vpm
Centrifugal Force - MEd5,510 lb
